Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3612 |

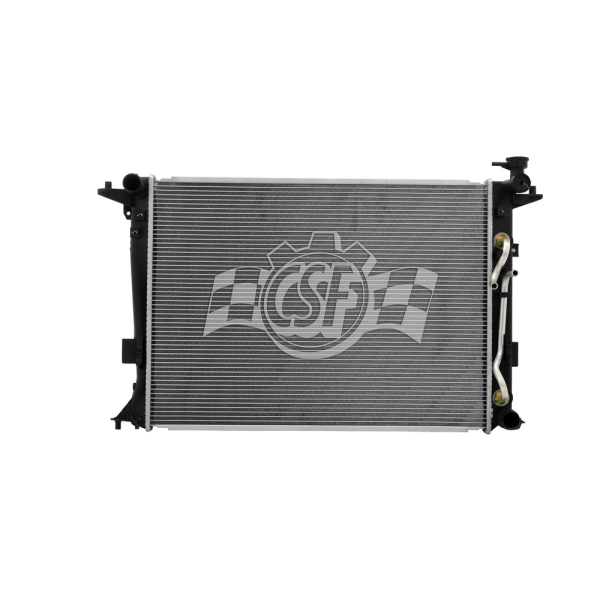

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/8 Right |
Box Height (in) | 6 14/16 |
Box Length (in) | 34 13/16 |
Box Weight (lbs) | 10 |
Box Width (in) | 22 9/16 |
Core Length | 25 3/16 |
Core Material | Aluminum |
Core Thickness | 5/8 |
Core Width | 18 1/4 |
Cross-flow/ Down-flow | Cross Flow |
Csf Cap Number | 4503 |
Hazardous Material | No |
Inlet Length (in) | 19 |
Inlet Width (in) | 1 9/16 |
No. Of Rows | 1 |
Oil Cooler (in) | 11 13/16 (high-efficiency Plate Type) |
Outlet Length(in) | 19 |
Outlet Width | 1 9/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe. |
Top Hose Fitting (in) | 1 3/8 Left |
Year Make Model | Trim | Engine |
---|---|---|
2013-2014 Hyundai Genesis Coupe | All Trims | 4 Cyl 2.0L |
