Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3603 |

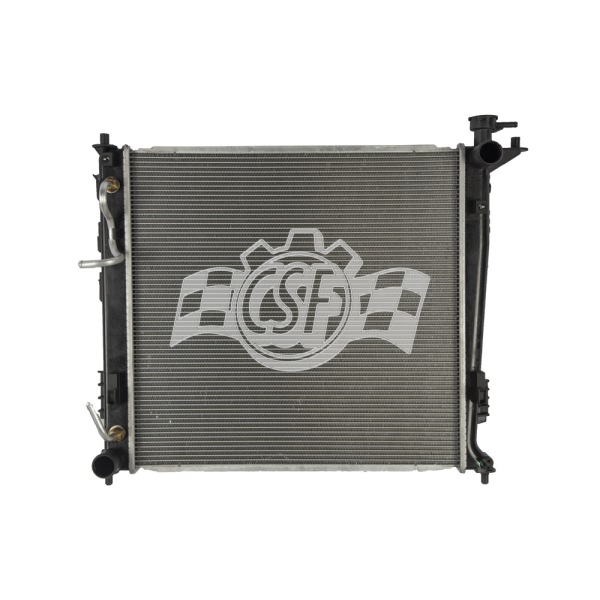

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/8 Left |
Box Height (in) | 6 4/16 |
Box Length (in) | 26 15/16 |
Box Weight (lbs) | 9 |
Box Width (in) | 23 9/16 |
Core Length | 19 1/8 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 18 3/8 |
Cross-flow/ Down-flow | Cross Flow |
Csf Cap Number | 4503 |
Hazardous Material | No |
Inlet Length (in) | 19 |
Inlet Width (in) | 1 9/16 |
No. Of Rows | 1 |
UPC | 710353036037 |
OE Part Number | 13324, 25310 2S200, CU13324 |
Oil Cooler (in) | 14 9/16 (high-efficiency Plate Type) |
Outlet Length(in) | 19 |
Outlet Width | 1 9/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 3/8 Right |
Year Make Model | Trim | Engine |
---|---|---|
2011-2016 Kia Sportage | All Trims | 4 Cyl 2.0L |
