Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3601 |

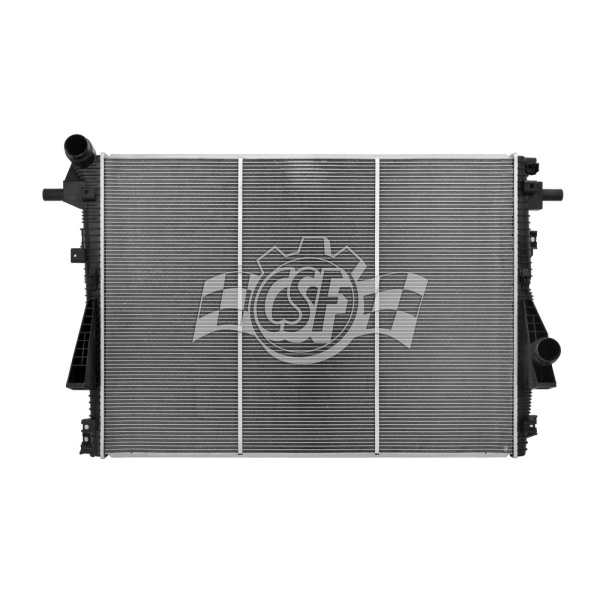

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 2 1/4 Right |
Box Height (in) | 9 |
Box Length (in) | 51 1/8 |
Box Weight (lbs) | 33 |
Box Width (in) | 33 |
Core Length | 38 3/8 |
Core Material | Aluminum |
Core Thickness | 1 5/8 |
Core Width | 27 11/16 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 28 3/8 |
Inlet Width (in) | 2 3/16 |
No. Of Rows | 2 |
UPC | 710353036013 |
OE Part Number | 13230, BC3Z 8005 K, CU13230, BC3Z 8005E |
Outlet Length(in) | 28 3/8 |
Outlet Width | 2 3/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe. |
Top Hose Fitting (in) | 2 1/4 Left |
Year Make Model | Trim | Engine |
---|---|---|
2011-2016 Ford F-250 Super Duty | All Trims | 8 Cyl 6.7L |
2011-2016 Ford F-350 Super Duty | All Trims | 8 Cyl 6.7L |
