Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3592 |

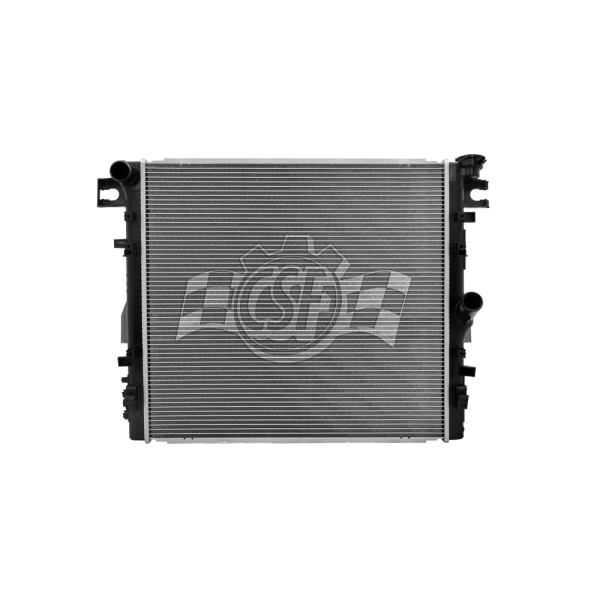

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/2 Right |
Box Height (in) | 7 13/16 |
Box Length (in) | 30 7/8 |
Box Weight (lbs) | 11 |
Box Width (in) | 23 3/8 |
Core Length | 21 15/16 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 20 5/16 |
Cross-flow/ Down-flow | Cross Flow |
Csf Cap Number | 4539 |
Hazardous Material | No |
Inlet Length (in) | 20 11/16 |
Inlet Width (in) | 1 7/16 |
No. Of Rows | 1 |
UPC | 710353035924 |
OE Part Number | 68143886AA, 8012957, CU2957, 2957 |
Outlet Length(in) | 20 11/16 |
Outlet Width | 1 7/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 1/2 Left |
Year Make Model | Trim | Engine |
---|---|---|
2007-2011 Jeep Wrangler | All Trims | 6 Cyl 3.8L |
2012-2018 Jeep Wrangler | All Trims | 6 Cyl 3.6L |
2018 Jeep Wrangler JK | All Trims | 6 Cyl 3.6L |
