Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3579 |

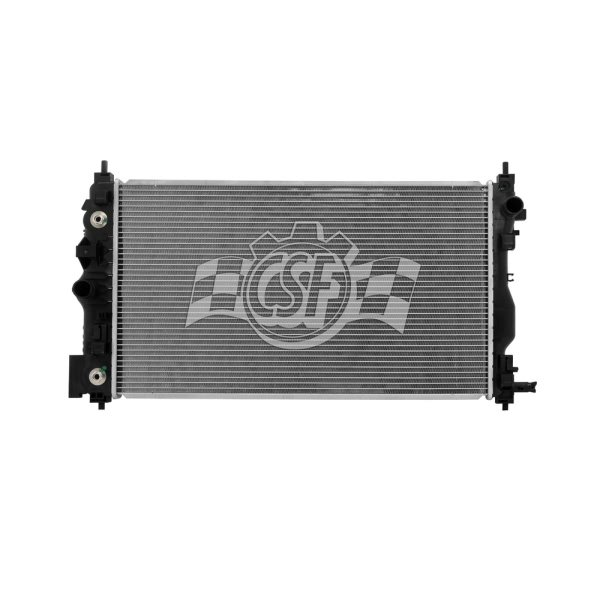

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/8 Left |
Box Height (in) | 5 11/16 |
Box Length (in) | 35 3/16 |
Box Weight (lbs) | 11 |
Box Width (in) | 21 |
Core Length | 26 3/4 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 15 1/4 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 15 13/16 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353035795 |
OE Part Number | 13267665, 13325, CU13246, 8013325 |
Oil Cooler (in) | 11 1/2 (high-efficiency Plate Type) |
Outlet Length(in) | 15 13/16 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect oil cooler fittings. |
Top Hose Fitting (in) | 1 3/8 Right |
Year Make Model | Trim | Engine |
---|---|---|
2012-2017 Buick Verano | All Trims | 4 Cyl 2.4L |
2013-2014 Buick Verano | All Trims | 4 Cyl 2.0L |
2013-2016 Buick Verano | All Trims | All Engines |
