Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3572 |

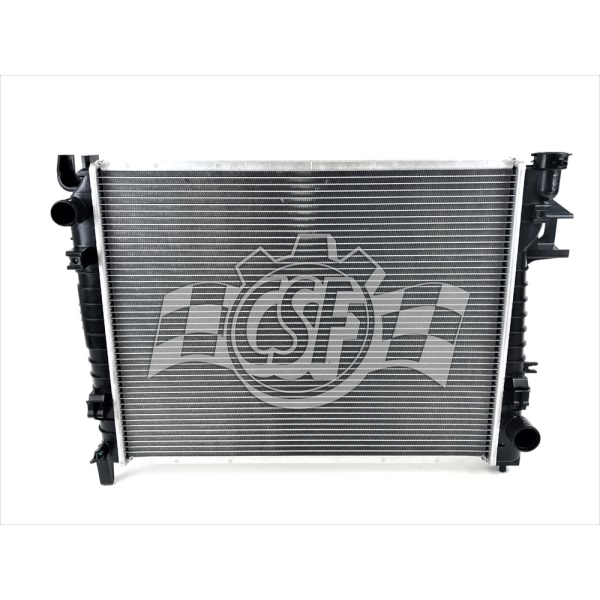

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/4 Right |
Box Height (in) | 8 5/8 |
Box Length (in) | 33 |
Box Weight (lbs) | 14 |
Box Width (in) | 24 5/16 |
Core Length | 24 |
Core Material | Aluminum |
Core Thickness | 1 5/8 |
Core Width | 18 13/16 |
Cross-flow/ Down-flow | Cross Flow |
Csf Cap Number | 4515 |
Hazardous Material | No |
Inlet Length (in) | 19 5/16 |
Inlet Width (in) | 2 3/4 |
No. Of Rows | 2 |
UPC | 710353035726 |
OE Part Number | 55056681 AD, 55056682 AB, 55056481 AB, CU2813, 55056481 AA, 55056479 AB, 55056681 AC, 8012813 |
Outlet Length(in) | 19 5/16 |
Outlet Width | 2 11/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 1/2 Left |
Year Make Model | Trim | Engine |
---|---|---|
2004-2008 Dodge Ram 1500 | All Trims | 6 Cyl 3.7L |
2004-2008 Dodge Ram 1500 | All Trims | 8 Cyl 4.7L |
2004-2008 Dodge Ram 1500 | All Trims | 8 Cyl 5.7L |
2003-2009 Dodge Ram 2500 | All Trims | 8 Cyl 5.7L |
2004-2008 Dodge Ram 2500 | All Trims | 8 Cyl 4.7L |
2003-2009 Dodge Ram 3500 | All Trims | 8 Cyl 5.7L |
