Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3571 |

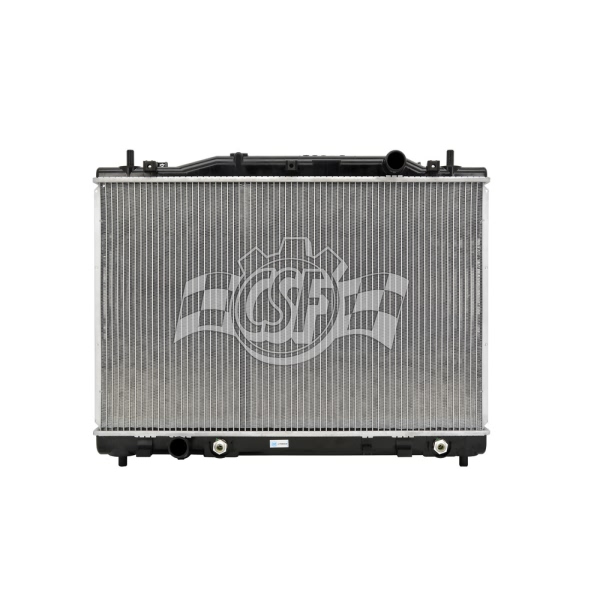

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/8 Left |
Box Height (in) | 5 11/16 |
Box Length (in) | 28 1/2 |
Box Weight (lbs) | 10 |
Box Width (in) | 23 3/8 |
Core Length | 16 11/16 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 25 7/8 |
Cross-flow/ Down-flow | Down Flow |
Hazardous Material | No |
Inlet Length (in) | 26 7/16 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353035719 |
OE Part Number | 88987622, CU2731, 8012731, CU2944 |
Oil Cooler (in) | 14 3/4 (high-efficiency Plate Type) |
Outlet Length(in) | 26 7/16 |
Outlet Width | 1 15/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect oil cooler fittings. |
Top Hose Fitting (in) | 1 3/8 Right |
Year Make Model | Trim | Engine |
---|---|---|
2004-2007 Cadillac CTS | All Trims | 6 Cyl 3.6L |
2005-2007 Cadillac CTS | All Trims | 6 Cyl 2.8L |
