Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3550 |

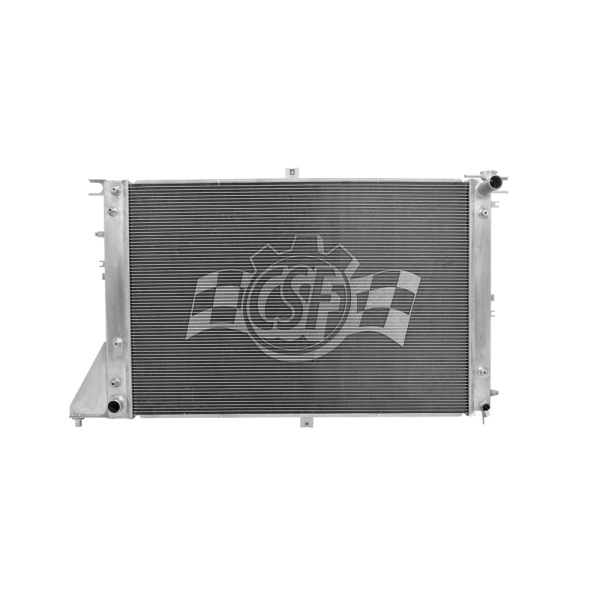

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/8 Left |
Box Height (in) | 9 3/16 |
Box Length (in) | 48 15/16 |
Box Weight (lbs) | 25 |
Box Width (in) | 29 5/8 |
Core Length | 35 3/16 |
Core Material | Aluminum |
Core Thickness | 1 5/8 |
Core Width | 23 11/16 |
Cross-flow/ Down-flow | Cross Flow |
Csf Cap Number | 4503 |
Hazardous Material | No |
Inlet Length (in) | 24 7/16 |
Inlet Width (in) | 2 3/8 |
No. Of Rows | 2 |
UPC | 710353035504 |
OE Part Number | 13335, 21460-1PA0A |
Oil Cooler (in) | 17 11/16 (high-effeciency Concentric Type) |
Outlet Length(in) | 24 7/16 |
Outlet Width | 2 3/8 |
Radiator Cap Supplied | No |
Tank Material | Aluminum |
Tech Note | All Aluminum tanks & core. |
Top Hose Fitting (in) | 1 3/8 Right |
Year Make Model | Trim | Engine |
---|---|---|
2012-2018 Nissan NV1500 | All Trims | 6 Cyl 4.0L |
2012-2018 Nissan NV2500 | All Trims | 6 Cyl 4.0L |
2012-2018 Nissan NV2500 | All Trims | 8 Cyl 5.6L |
2012-2018 Nissan NV3500 | All Trims | 6 Cyl 4.0L |
2012-2018 Nissan NV3500 | All Trims | 8 Cyl 5.6L |
