Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3546 |

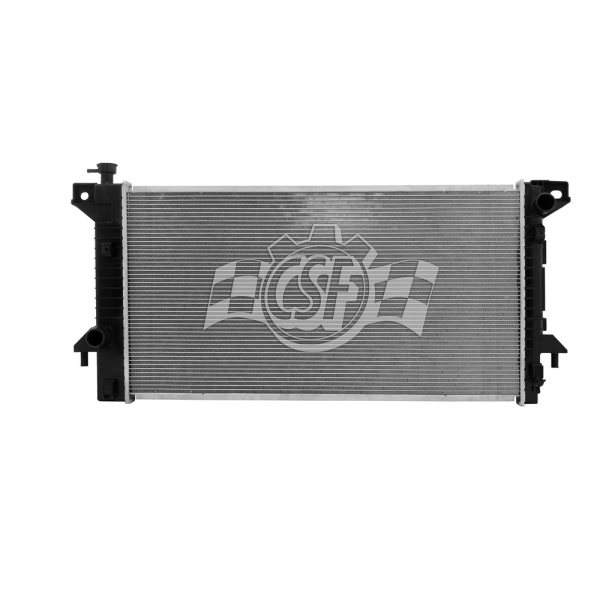

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 9/16 Left |
Box Height (in) | 7 7/16 |
Box Length (in) | 41 11/16 |
Box Weight (lbs) | 14 |
Box Width (in) | 21 3/4 |
Core Length | 31 7/16 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 16 5/16 |
Cross-flow/ Down-flow | Cross Flow |
Csf Cap Number | 4503 |
Hazardous Material | No |
Inlet Length (in) | 17 3/4 |
Inlet Width (in) | 2 1/16 |
No. Of Rows | 1 |
UPC | 710353035467 |
OE Part Number | 9L3Z 8005 A, 9L3Z 8005 B |
Oil Cooler (in) | 12 (high-efficiency Plate Type) |
Outlet Length(in) | 17 3/4 |
Outlet Width | 2 1/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe. |
Top Hose Fitting (in) | 1 3/4 Right |
Year Make Model | Trim | Engine |
---|---|---|
2009-2014 Ford Expedition | All Trims | 8 Cyl 5.4L |
2009 Ford F-150 | All Trims | 8 Cyl 5.4L |
2009-2010 Ford F-150 | All Trims | 8 Cyl 4.6L |
2010 Ford F-150 | FX2 | 8 Cyl 5.4L |
2010 Ford F-150 | FX4 | 8 Cyl 5.4L |
2010 Ford F-150 | Harley-Davidson Edition | 8 Cyl 5.4L |
2010 Ford F-150 | King Ranch | 8 Cyl 5.4L |
2010 Ford F-150 | Lariat | 8 Cyl 5.4L |
2010 Ford F-150 | Platinum | 8 Cyl 5.4L |
2010 Ford F-150 | SVT Raptor | 8 Cyl 5.4L |
