Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3539 |

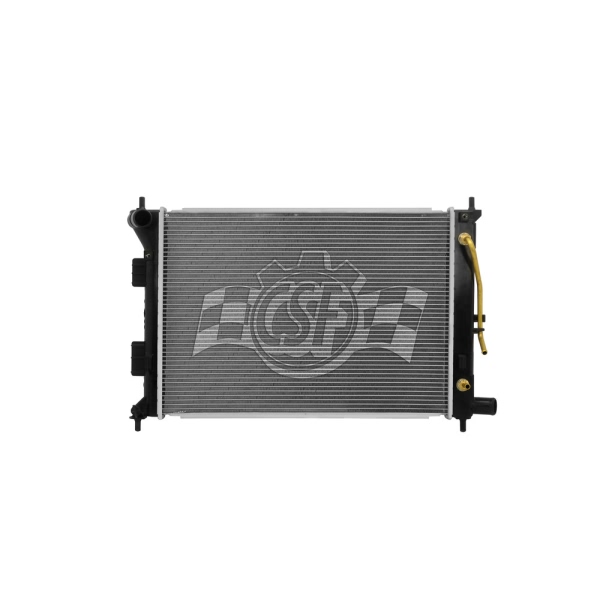

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 5/16 Right |
Box Height (in) | 5 4/16 |
Box Length (in) | 29 7/8 |
Box Weight (lbs) | 7 |
Box Width (in) | 19 13/16 |
Core Length | 21 5/8 |
Core Material | Aluminum |
Core Thickness | 5/8 |
Core Width | 15 1/4 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 15 13/16 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353035399 |
OE Part Number | 13202, 13374, 25310-3X011, 25310-3X100, CU13202, 8013202 |
Oil Cooler (in) | 11 (high-effeciency Concentric Type) |
Outlet Length(in) | 15 13/16 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 3/8 Left |
Year Make Model | Trim | Engine |
---|---|---|
2011-2013 Hyundai Elantra | All Trims | 4 Cyl 1.8L |
2013 Hyundai Elantra Coupe | All Trims | 4 Cyl 1.8L |
2014 Kia Forte | All Trims | 4 Cyl 1.8L |
2012-2013 Kia Soul | All Trims | 4 Cyl 1.6L |
