Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3518 |

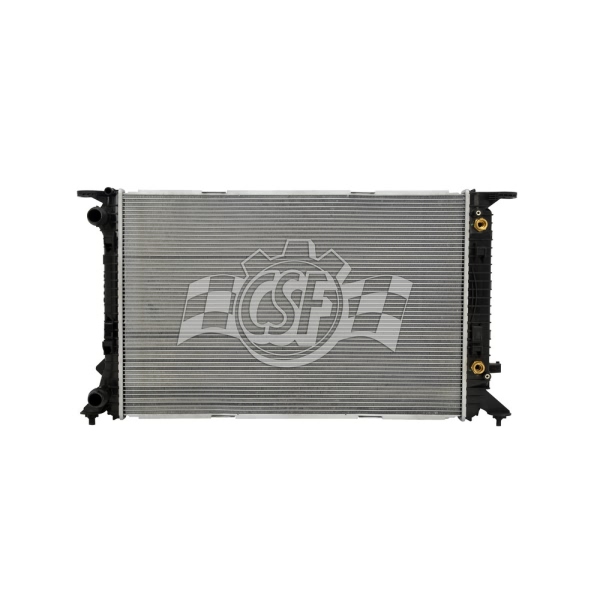

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/4 Left |
Box Height (in) | 6 5/8 |
Box Length (in) | 37 15/16 |
Box Weight (lbs) | 13 |
Box Width (in) | 22 3/16 |
Core Length | 28 3/8 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 18 5/16 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 19 |
Inlet Width (in) | 1 5/16 |
No. Of Rows | 1 |
UPC | 710353035184 |
OE Part Number | 13188, 8K0 121 251 T, 8013188, CU13188 |
Oil Cooler (in) | 11 13/16 (high-efficiency Plate Type) |
Outlet Length(in) | 19 |
Outlet Width | 1 3/4 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe & quick-connect oil cooler fittings. |
Top Hose Fitting (in) | 1 1/4 Left |
Year Make Model | Trim | Engine |
---|---|---|
2009-2016 Audi A4 | All Trims | 4 Cyl 2.0L |
2009-2016 Audi A4 Quattro | All Trims | 4 Cyl 2.0L |
2013-2016 Audi A4 allroad | All Trims | 4 Cyl 2.0L |
2010-2016 Audi A5 | All Trims | 4 Cyl 2.0L |
2010-2017 Audi A5 Quattro | All Trims | 4 Cyl 2.0L |
2012-2017 Audi A6 | All Trims | 4 Cyl 2.0L |
2013-2015 Audi A6 Quattro | All Trims | 4 Cyl 2.0L |
2010-2016 Audi Q5 | All Trims | 4 Cyl 2.0L |
