Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3494 |

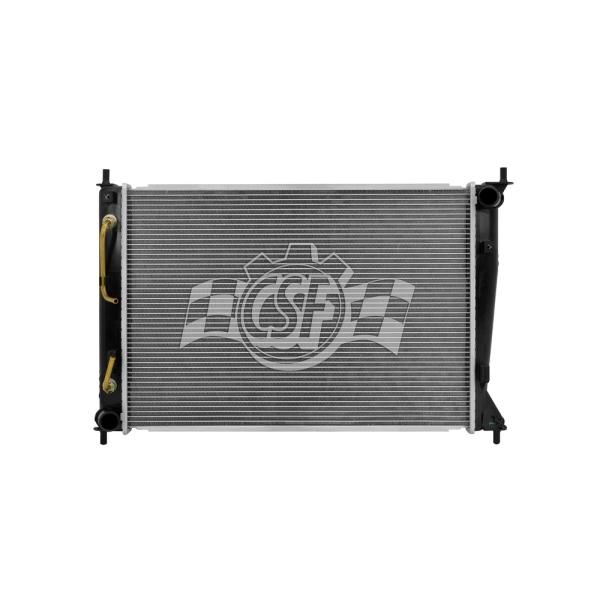

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 5/16 Left |
Box Height (in) | 6 1/16 |
Box Length (in) | 29 7/16 |
Box Weight (lbs) | 8 |
Box Width (in) | 20 13/16 |
Core Length | 22 13/16 |
Core Material | Aluminum |
Core Thickness | 5/8 |
Core Width | 16 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 16 5/8 |
Inlet Width (in) | 1 3/8 |
No. Of Rows | 1 |
UPC | 710353034941 |
OE Part Number | 13134, 25310-2K150, 8013134, CU13134, 25310-2K100 |
Oil Cooler (in) | 11 (high-effeciency Concentric Type) |
Outlet Length(in) | 16 5/8 |
Outlet Width | 1 3/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 5/16 Right |
Year Make Model | Trim | Engine |
---|---|---|
2010-2011 Kia Soul | All Trims | 4 Cyl 2.0L |
