Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3474 |

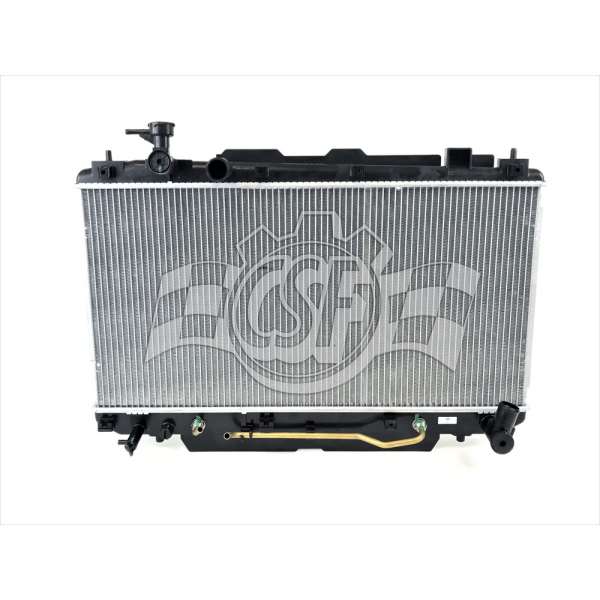

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 5/16 Right |
Box Height (in) | 6 7/16 |
Box Length (in) | 31 5/8 |
Box Weight (lbs) | 12 |
Box Width (in) | 24 1/2 |
Core Length | 14 7/8 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 29 1/16 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4513 |
Hazardous Material | No |
Inlet Length (in) | 29 11/16 |
Inlet Width (in) | 1 5/16 |
No. Of Rows | 1 |
UPC | 710353034743 |
OE Part Number | 16400-28500, CU2403, 16400-28180, 8012411, 16400-28170, 221-3115, 16400-28160, CU2411, 2404, 2834, 16400-28190, 8012834, 2403, 2411, 8012403, 16400-28480 |
Oil Cooler (in) | 15 3/8 (high-effeciency Concentric Type) |
Outlet Length(in) | 29 11/16 |
Outlet Width | 1 5/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;Multifit model. |
Top Hose Fitting (in) | 1 3/8 Left |
Year Make Model | Trim | Engine |
---|---|---|
2002-2003 Toyota RAV4 | All Trims | 4 Cyl 2.0L |
2004-2005 Toyota RAV4 | All Trims | 4 Cyl 2.4L |
