Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3473 |

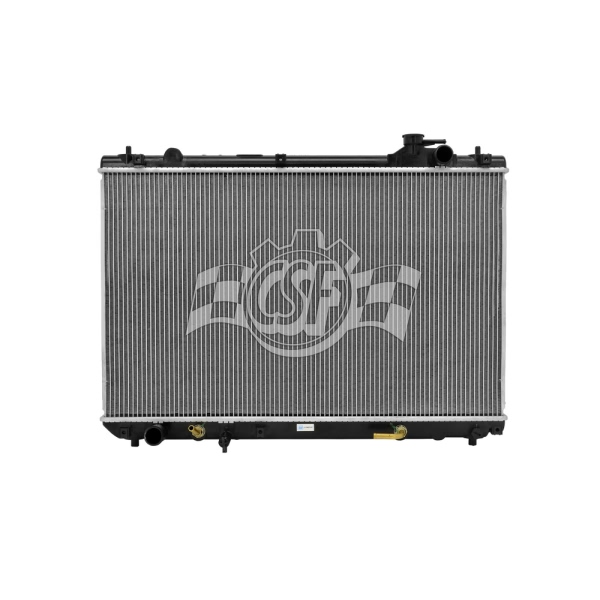

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/8 Left |
Box Height (in) | 6 1/16 |
Box Length (in) | 31 7/16 |
Box Weight (lbs) | 11 |
Box Width (in) | 24 1/2 |
Core Length | 17 11/16 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 29 1/16 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4514 |
Hazardous Material | No |
Inlet Length (in) | 29 1/2 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353034736 |
OE Part Number | 16400-20220, 16400-20240, CU2848, 2849, 2377, 2452, 221-0510, 8012377, 8012849, 2848, 16400-20340, 8012452, 16400-20330, CU2452, 221-0511, 8012848, CU2377 |
Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
Outlet Length(in) | 29 1/2 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;Multifit model. |
Top Hose Fitting (in) | 1 3/8 Right |
Year Make Model | Trim | Engine |
---|---|---|
2001-2003 Toyota Highlander | All Trims | 6 Cyl 3.0L |
2004-2007 Toyota Highlander | All Trims | 6 Cyl 3.3L |
