Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3471 |

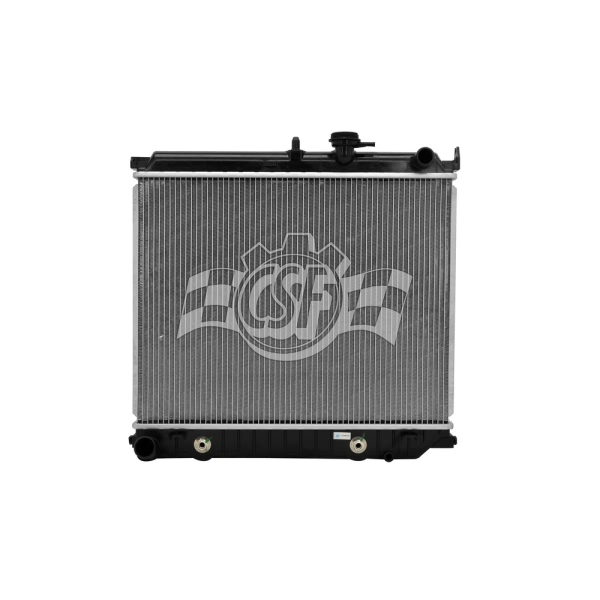

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 9/16 Left |
Box Height (in) | 5 4/16 |
Box Length (in) | 26 1/8 |
Box Weight (lbs) | 11 |
Box Width (in) | 26 1/8 |
Core Length | 18 1/8 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 22 3/4 |
Cross-flow/ Down-flow | Down Flow |
Hazardous Material | No |
Inlet Length (in) | 23 1/4 |
Inlet Width (in) | 1 7/8 |
No. Of Rows | 1 |
UPC | 710353034712 |
OE Part Number | 15120862, 15199308, CU2707, 2707, 8012707 |
Oil Cooler (in) | 11 1/2 (high-efficiency Plate Type) |
Outlet Length(in) | 23 1/4 |
Outlet Width | 1 7/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect oil cooler fittings;Manufactured with steel crimps to strengthen radiator by 40% over O.E. |
Top Hose Fitting (in) | 1 5/16 Right |
Year Make Model | Trim | Engine |
---|---|---|
2004-2006 Chevrolet Colorado | All Trims | 4 Cyl 2.8L |
2004-2006 Chevrolet Colorado | All Trims | 5 Cyl 3.5L |
2007-2012 Chevrolet Colorado | All Trims | 4 Cyl 2.9L |
2007-2012 Chevrolet Colorado | All Trims | 5 Cyl 3.7L |
2004-2006 GMC Canyon | All Trims | 4 Cyl 2.8L |
2004-2006 GMC Canyon | All Trims | 5 Cyl 3.5L |
2007-2012 GMC Canyon | All Trims | 4 Cyl 2.9L |
2007-2012 GMC Canyon | All Trims | 5 Cyl 3.7L |
2006 Isuzu i-280 | All Trims | 4 Cyl 2.8L |
2007-2008 Isuzu i-290 | All Trims | 4 Cyl 2.9L |
