Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3461 |

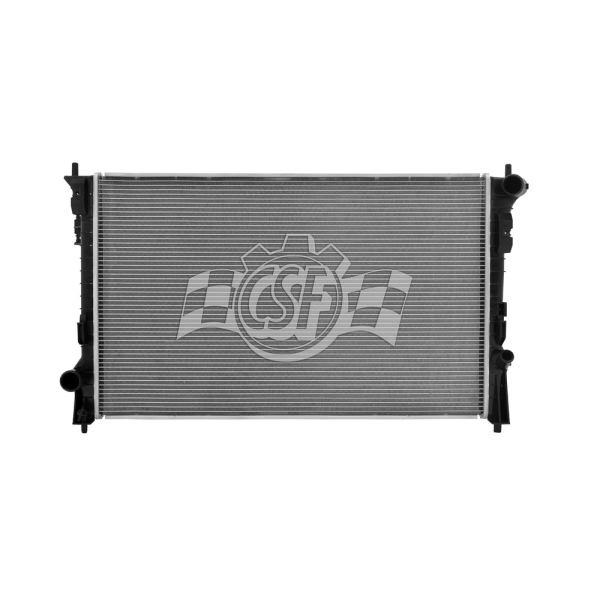

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/2 Left |
Box Height (in) | 5 14/16 |
Box Length (in) | 35 9/16 |
Box Weight (lbs) | 9 |
Box Width (in) | 22 3/8 |
Core Length | 28 3/4 |
Core Material | Aluminum |
Core Thickness | 5/8 |
Core Width | 18 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 18 1/16 |
Inlet Width (in) | 1 9/16 |
No. Of Rows | 1 |
UPC | 710353034613 |
OE Part Number | 13086, 7T4Z 8005 B, 8G1Z 8005 A, 8012937, CU2936, 8012936, 2936, CU13086 |
Outlet Length(in) | 18 1/16 |
Outlet Width | 1 9/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 1/2 Right |
Year Make Model | Trim | Engine |
---|---|---|
2007-2014 Ford Edge | All Trims | 6 Cyl 3.5L |
2011-2014 Ford Edge | All Trims | 6 Cyl 3.7L |
2008-2012 Ford Taurus | All Trims | 6 Cyl 3.5L |
2008-2009 Ford Taurus X | All Trims | 6 Cyl 3.5L |
2009-2012 Lincoln MKS | All Trims | 6 Cyl 3.7L |
2007-2010 Lincoln MKX | All Trims | 6 Cyl 3.5L |
2011-2015 Lincoln MKX | All Trims | 6 Cyl 3.7L |
2008-2009 Mercury Sable | All Trims | 6 Cyl 3.5L |
