Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3453 |

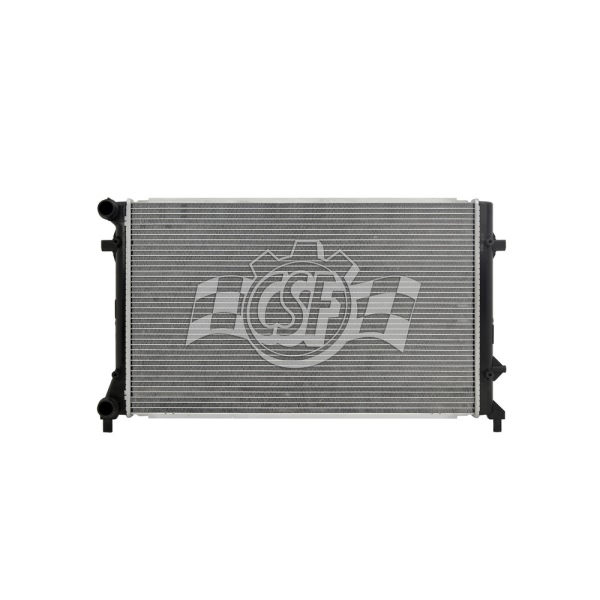

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 5/16 Left |
Box Height (in) | 4 11/16 |
Box Length (in) | 31 5/8 |
Box Weight (lbs) | 8 |
Box Width (in) | 20 |
Core Length | 25 9/16 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 15 11/16 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 16 1/16 |
Inlet Width (in) | 1 3/8 |
No. Of Rows | 1 |
UPC | 710353034538 |
OE Part Number | 1K0 121 251 R, 1K0 121 251 BQ, 1K0 121 253 AN, 1K0 121 251 Q, 8012996, 1K0 121 251 E, 1K0 121 251 P, 1K0 121 251 AR, 1K0 121 253 P, CU2995, 1K0 121 253 AC, 1K0 121 251 CJ, 8012995, 1K0 121 251 BR, 2995, 1K0 121 251 F, 2996 |
Outlet Length(in) | 16 1/16 |
Outlet Width | 1 3/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe. |
Top Hose Fitting (in) | 1 5/16 Left |
Year Make Model | Trim | Engine |
---|---|---|
2010-2014 Volkswagen Golf | All Trims | 5 Cyl 2.5L |
2005-2014 Volkswagen Jetta | All Trims | 5 Cyl 2.5L |
2006-2009 Volkswagen Rabbit | All Trims | 5 Cyl 2.5L |
