Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3451 |

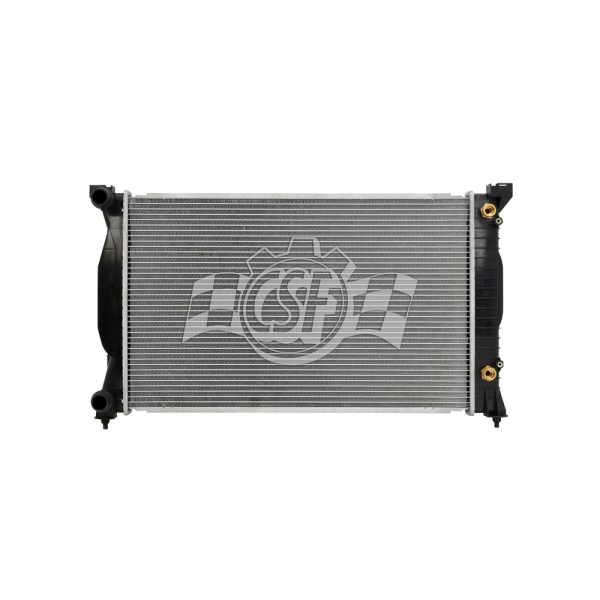

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/4 Left |
Box Height (in) | 6 5/8 |
Box Length (in) | 32 |
Box Weight (lbs) | 10 |
Box Width (in) | 20 |
Core Length | 24 15/16 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 15 1/4 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 16 1/16 |
Inlet Width (in) | 1 9/16 |
No. Of Rows | 1 |
UPC | 710353034514 |
OE Part Number | 8E0 121 251 AE, 8012556, 2823, 8E0 121 251 L, 8E0 121 251 B, 8E0 121 251 AQ |
Oil Cooler (in) | 11 13/16 (high-efficiency Plate Type) |
Outlet Length(in) | 16 1/16 |
Outlet Width | 1 9/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe. |
Top Hose Fitting (in) | 1 1/4 Left |
Year Make Model | Trim | Engine |
---|---|---|
2002-2008 Audi A4 | All Trims | 4 Cyl 1.8L |
2005-2016 Audi A4 | All Trims | 4 Cyl 2.0L |
2002-2005 Audi A4 Quattro | All Trims | 4 Cyl 1.8L |
2005-2016 Audi A4 Quattro | All Trims | 4 Cyl 2.0L |
