Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3448 |

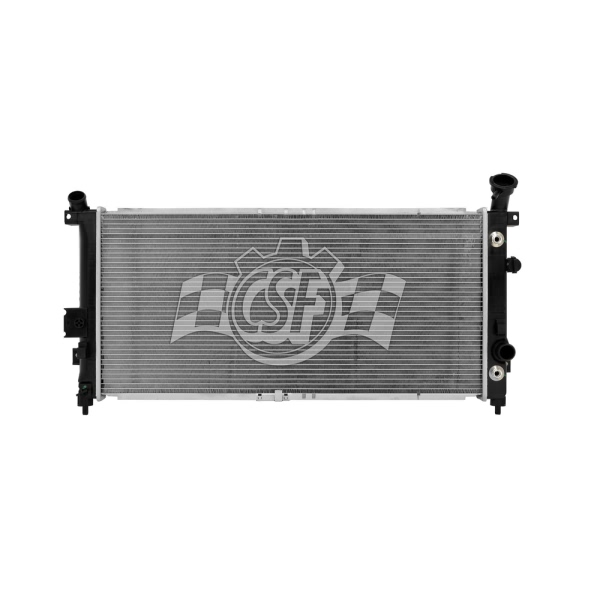

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 5/16 Right |
Box Height (in) | 6 1/16 |
Box Length (in) | 37 9/16 |
Box Weight (lbs) | 10 |
Box Width (in) | 21 3/4 |
Core Length | 30 9/16 |
Core Material | Aluminum |
Core Thickness | 5/8 |
Core Width | 14 1/2 |
Cross-flow/ Down-flow | Cross Flow |
Csf Cap Number | 4515 |
Hazardous Material | No |
Inlet Length (in) | 15 1/4 |
Inlet Width (in) | 1 15/16 |
No. Of Rows | 1 |
UPC | 710353034484 |
OE Part Number | 10310318, 15791268, 15791269, 10310317, 10420263, 10420728, 25813509, CU2562, 8012562, 8012728 |
Oil Cooler (in) | 10 13/16 (high-efficiency Plate Type) |
Outlet Length(in) | 15 1/4 |
Outlet Width | 1 15/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;Multifit model supplied with quick-connect oil cooler fittings & sensor plug. |
Top Hose Fitting (in) | 1 3/8 Left |
Year Make Model | Trim | Engine |
---|---|---|
2002-2005 Buick Rendezvous | All Trims | 6 Cyl 3.4L |
2006-2007 Buick Rendezvous | All Trims | 6 Cyl 3.5L |
2005-2006 Buick Terraza | All Trims | 6 Cyl 3.5L |
2005-2006 Chevrolet Uplander | All Trims | 6 Cyl 3.5L |
2001-2005 Chevrolet Venture | All Trims | 6 Cyl 3.4L |
2001-2004 Oldsmobile Silhouette | All Trims | 6 Cyl 3.4L |
2001-2005 Pontiac Aztek | All Trims | 6 Cyl 3.4L |
2001-2005 Pontiac Montana | All Trims | 6 Cyl 3.4L |
2005-2006 Pontiac Montana | All Trims | 6 Cyl 3.5L |
2005-2006 Saturn Relay | All Trims | 6 Cyl 3.5L |
