Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3426 |

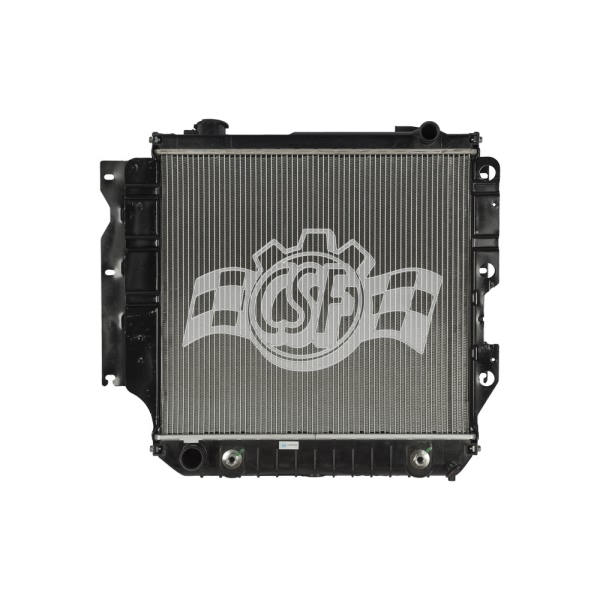

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/2 Left |
Box Height (in) | 5 1/16 |
Box Length (in) | 24 15/16 |
Box Weight (lbs) | 15 |
Box Width (in) | 27 5/16 |
Core Length | 18 1/8 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 19 11/16 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4539 |
Hazardous Material | No |
Inlet Length (in) | 20 3/16 |
Inlet Width (in) | 1 15/16 |
No. Of Rows | 1 |
UPC | 710353034262 |
OE Part Number | 2760, 2841, CU2841, 55037653 AC, 8012841 |
Oil Cooler (in) | 12 (high-efficiency Plate Type) |
Outlet Length(in) | 20 3/16 |
Outlet Width | 1 15/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect oil cooler fittings. |
Top Hose Fitting (in) | 1 1/4 Right |
Year Make Model | Trim | Engine |
---|---|---|
2005-2006 Jeep TJ | All Trims | 4 Cyl 2.4L |
2005-2006 Jeep TJ | All Trims | 6 Cyl 4.0L |
2005-2006 Jeep Wrangler | All Trims | 4 Cyl 2.4L |
2005-2006 Jeep Wrangler | All Trims | 6 Cyl 4.0L |
