Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3423 |

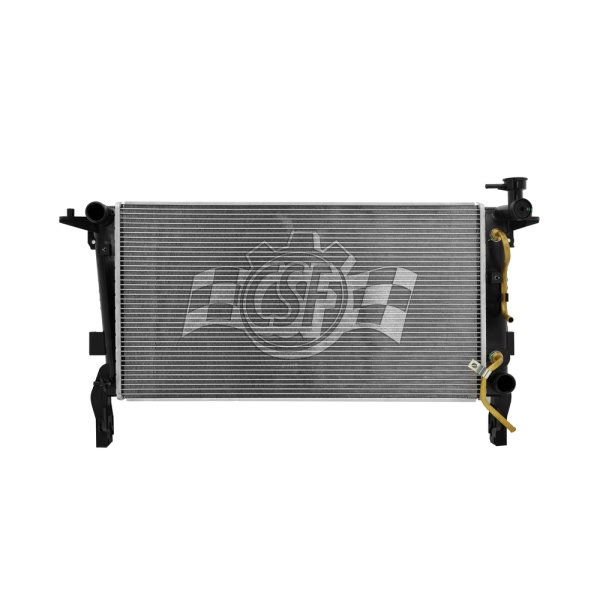

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/8 Right |
Box Height (in) | 6 4/16 |
Box Length (in) | 34 13/16 |
Box Weight (lbs) | 10 |
Box Width (in) | 21 |
Core Length | 25 3/16 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 13 5/8 |
Cross-flow/ Down-flow | Cross Flow |
Csf Cap Number | 4503 |
Hazardous Material | No |
Inlet Length (in) | 13 3/8 |
Inlet Width (in) | 1 11/16 |
No. Of Rows | 1 |
UPC | 710353034231 |
OE Part Number | 13120, 25310-2M100, 8013120, 25310-2M000, CU13120 |
Oil Cooler (in) | 8 11/16 (high-effeciency Concentric Type) |
Outlet Length(in) | 13 3/8 |
Outlet Width | 1 11/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 3/8 Left |
Year Make Model | Trim | Engine |
---|---|---|
2010-2012 Hyundai Genesis Coupe | All Trims | 4 Cyl 2.0L |
