Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3417 |

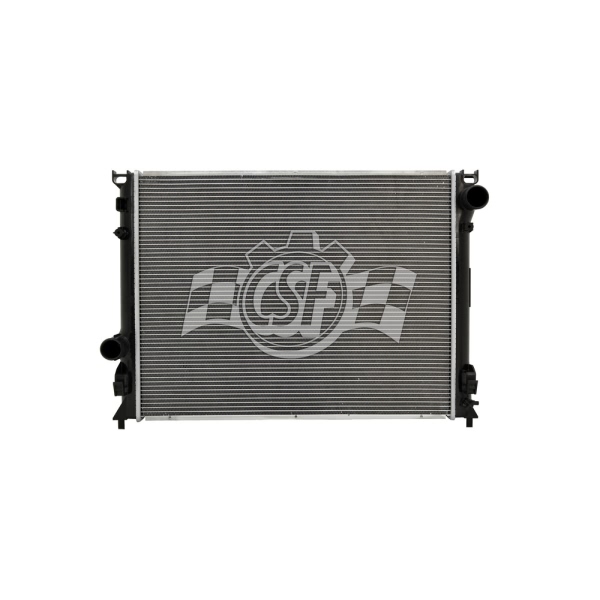

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 5/8 Left |
Box Height (in) | 7 1/16 |
Box Length (in) | 31 1/4 |
Box Weight (lbs) | 13 |
Box Width (in) | 23 1/8 |
Core Length | 24 1/8 |
Core Material | Aluminum |
Core Thickness | 1 5/8 |
Core Width | 18 11/16 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 19 1/8 |
Inlet Width (in) | 2 1/4 |
No. Of Rows | 2 |
UPC | 710353034170 |
OE Part Number | 13158, 8013157, 68050131 AA, 68050127 AA, CU13158 |
Outlet Length(in) | 19 1/8 |
Outlet Width | 2 1/4 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 3/4 Right |
Year Make Model | Trim | Engine |
---|---|---|
2009-2010 Chrysler 300 | All Trims | 6 Cyl 2.7L |
2009-2010 Chrysler 300 | All Trims | 6 Cyl 3.5L |
2009-2010 Chrysler 300 | All Trims | 8 Cyl 5.7L |
2009-2010 Chrysler 300 | All Trims | 8 Cyl 6.1L |
2009-2010 Dodge Challenger | All Trims | 6 Cyl 3.5L |
2009-2010 Dodge Challenger | All Trims | 8 Cyl 5.7L |
2009-2010 Dodge Challenger | All Trims | 8 Cyl 6.1L |
2009-2010 Dodge Charger | All Trims | 6 Cyl 2.7L |
2009-2010 Dodge Charger | All Trims | 6 Cyl 3.5L |
2009-2010 Dodge Charger | All Trims | 8 Cyl 5.7L |
