Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3406 |

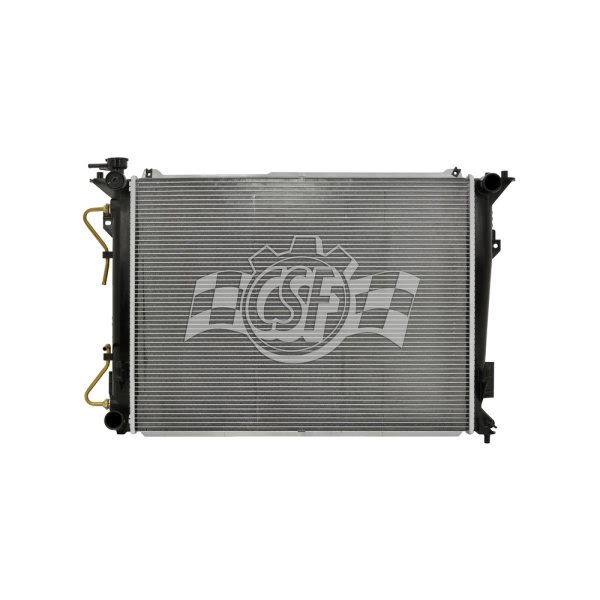

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/8 Left |
Box Height (in) | 6 4/16 |
Box Length (in) | 34 |
Box Weight (lbs) | 10 |
Box Width (in) | 23 3/8 |
Core Length | 25 1/16 |
Core Material | Aluminum |
Core Thickness | 5/8 |
Core Width | 19 |
Cross-flow/ Down-flow | Cross Flow |
Csf Cap Number | 4503 |
Hazardous Material | No |
Inlet Length (in) | 19 |
Inlet Width (in) | 1 9/16 |
No. Of Rows | 1 |
UPC | 710353034064 |
OE Part Number | 13060, 8012831, 2832, 2899, 2831, 25310-0A180, 25310-3K190, CU13030, CU2831, 8013060, CU13060, 25310-3A290, CU2832, 8012832, 25310-0A080, 25310-3K090, 25310-0A290, 25310-3K290 |
Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
Outlet Length(in) | 19 |
Outlet Width | 1 9/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;Multifit model. |
Top Hose Fitting (in) | 1 3/8 Right |
Year Make Model | Trim | Engine |
---|---|---|
2010-2011 Hyundai Azera | All Trims | 6 Cyl 3.3L |
2010-2011 Hyundai Azera | All Trims | 6 Cyl 3.8L |
2008-2010 Hyundai Sonata | All Trims | 4 Cyl 2.4L |
2008-2010 Hyundai Sonata | All Trims | 6 Cyl 3.3L |
2006-2010 Kia Optima | All Trims | 4 Cyl 2.4L |
2006-2010 Kia Optima | All Trims | 6 Cyl 2.7L |
