Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3382 |

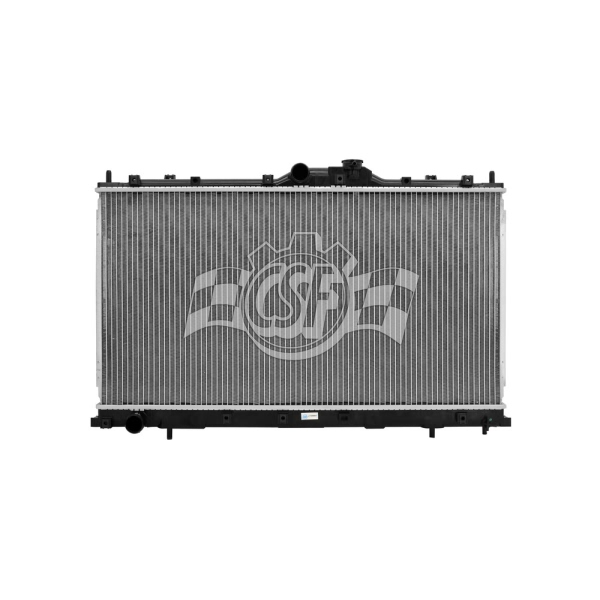

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/8 Left |
Box Height (in) | 4 11/16 |
Box Length (in) | 33 3/16 |
Box Weight (lbs) | 9 |
Box Width (in) | 22 3/8 |
Core Length | 15 3/4 |
Core Material | Aluminum |
Core Thickness | 5/8 |
Core Width | 29 13/16 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4514 |
Hazardous Material | No |
Inlet Length (in) | 30 1/4 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353033821 |
OE Part Number | 2724, 2722, MN 1350A377, CU2722, 8012723 |
Outlet Length(in) | 30 1/4 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. Temperature sensor on core not supplied. Original sensor seat must be removed and used. |
Top Hose Fitting (in) | 1 3/8 Centre |
Year Make Model | Trim | Engine |
---|---|---|
2004-2006 Mitsubishi Galant | All Trims | 6 Cyl 3.8L |
2004-2010 Mitsubishi Galant | All Trims | 4 Cyl 2.4L |
