Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3375 |

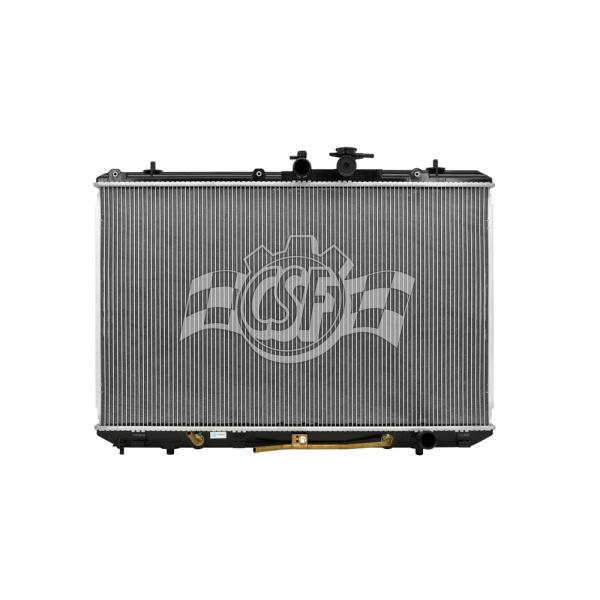

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/8 Right |
Box Height (in) | 6 4/16 |
Box Length (in) | 33 |
Box Weight (lbs) | 13 |
Box Width (in) | 25 7/8 |
Core Length | 18 11/16 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 30 5/16 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4514 |
Hazardous Material | No |
Inlet Length (in) | 31 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353033753 |
OE Part Number | 13023, 13024, 16041-31540, 16041-31550, 16041-OP251, CU13024, 16041-OP250, 8013024, 16041-OP240 |
Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
Outlet Length(in) | 31 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 3/8 Centre |
Year Make Model | Trim | Engine |
---|---|---|
2008-2013 Toyota Highlander | All Trims | 6 Cyl 3.5L |
