Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3366 |

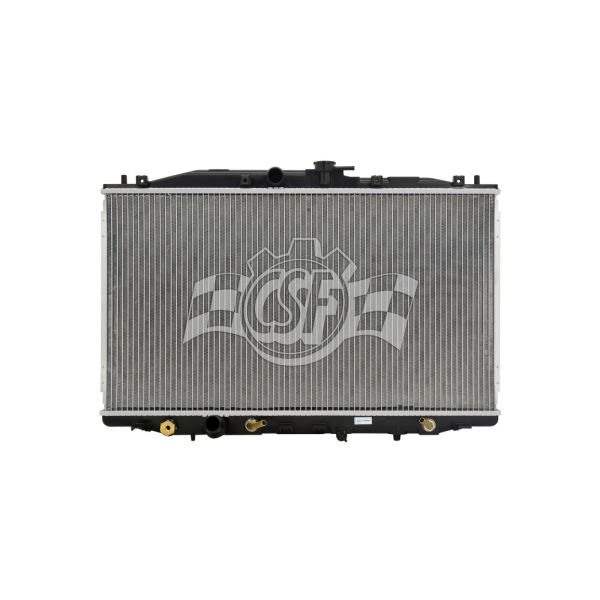

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/4 Left |
Box Height (in) | 5 11/16 |
Box Length (in) | 30 7/8 |
Box Weight (lbs) | 9 |
Box Width (in) | 22 3/16 |
Core Length | 15 13/16 |
Core Material | Aluminum |
Core Thickness | 5/8 |
Core Width | 28 1/4 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4503 |
Hazardous Material | No |
Inlet Length (in) | 28 3/4 |
Inlet Width (in) | 1 1/16 |
No. Of Rows | 1 |
UPC | 710353033661 |
OE Part Number | 19010-RBB-A51, CU2966, 8012966, 2680, 8012680, CU2680, 19010-RBB-E01, 2966, 19010-RBB-E51 |
Oil Cooler (in) | 12 13/16 (high-effeciency Concentric Type) |
Outlet Length(in) | 28 3/4 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core; Multifit model supplied with Unique Dual Sensor design on bottom tank and with quick-connect outlet pipe. |
Top Hose Fitting (in) | 1 1/4 Left |
Year Make Model | Trim | Engine |
---|---|---|
2004-2008 Acura TSX | All Trims | 4 Cyl 2.4L |
