Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3364 |

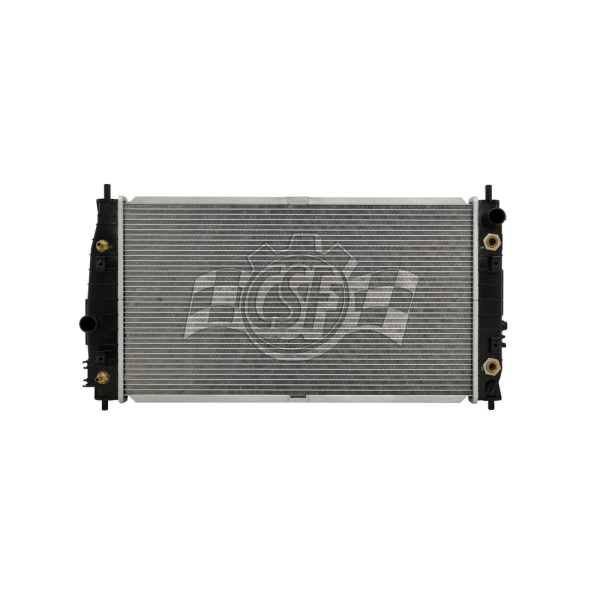

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 5/16 Left |
Box Height (in) | 5 1/2 |
Box Length (in) | 34 |
Box Weight (lbs) | 11 |
Box Width (in) | 19 |
Core Length | 26 9/16 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 14 1/2 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 15 5/16 |
Inlet Width (in) | 1 11/16 |
No. Of Rows | 1 |
UPC | 710353033647 |
OE Part Number | 4758288, 5010359, 2184, 8012183, 5010359 AA, 2183, CU2184, 5010359 AB, 8012184, 4758288 AB |
Oil Cooler (in) | 9 1/2 (high-effeciency Concentric Type);10 (high-effeciency Concentric Type) |
Outlet Length(in) | 15 5/16 |
Outlet Width | 1 11/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;Manufactured with steel crimps to strengthen radiator by 40% over O.E. |
Top Hose Fitting (in) | 1 5/16 Right |
Year Make Model | Trim | Engine |
---|---|---|
1999-2004 Chrysler 300M | All Trims | 6 Cyl 3.5L |
1998-2001 Chrysler Concorde | All Trims | 6 Cyl 3.2L |
1998-2004 Chrysler Concorde | All Trims | 6 Cyl 2.7L |
2002-2004 Chrysler Concorde | All Trims | 6 Cyl 3.5L |
1998-2001 Chrysler Intrepid | All Trims | 6 Cyl 3.2L |
1998-2004 Chrysler Intrepid | All Trims | 6 Cyl 2.7L |
2000-2004 Chrysler Intrepid | All Trims | 6 Cyl 3.5L |
1999-2001 Chrysler LHS | All Trims | 6 Cyl 3.5L |
1998-2001 Dodge Intrepid | All Trims | 6 Cyl 3.2L |
1998-2004 Dodge Intrepid | All Trims | 6 Cyl 2.7L |
