Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3362 |

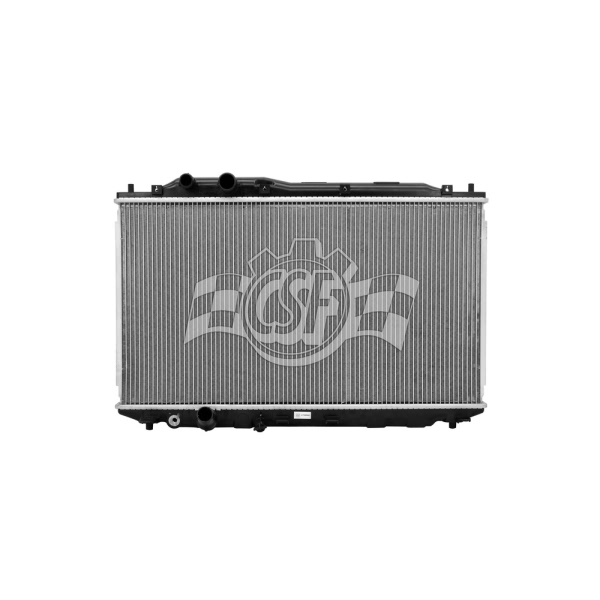

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/4 Left |
Box Height (in) | 5 1/2 |
Box Length (in) | 29 1/4 |
Box Weight (lbs) | 8 |
Box Width (in) | 20 9/16 |
Core Length | 14 3/4 |
Core Material | Aluminum |
Core Thickness | 5/8 |
Core Width | 26 11/16 |
Cross-flow/ Down-flow | Down Flow |
Hazardous Material | No |
Inlet Length (in) | 27 3/16 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353033623 |
OE Part Number | 19010-RNB-A51, CU2922, 8012922, 8012926, CU2927, 2926, 2922, 221-3234, 221-3233 |
Outlet Length(in) | 27 3/16 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe. |
Top Hose Fitting (in) | 1 1/4 & 1 1/16 Left |
Year Make Model | Trim | Engine |
---|---|---|
2006-2011 Honda Civic | All Trims | 4 Cyl 1.8L |
2006-2011 Honda Civic | Si | 4 Cyl 2.0L |
2008 Honda Civic | MUGEN Si | 4 Cyl 2.0L |
