Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3358 |

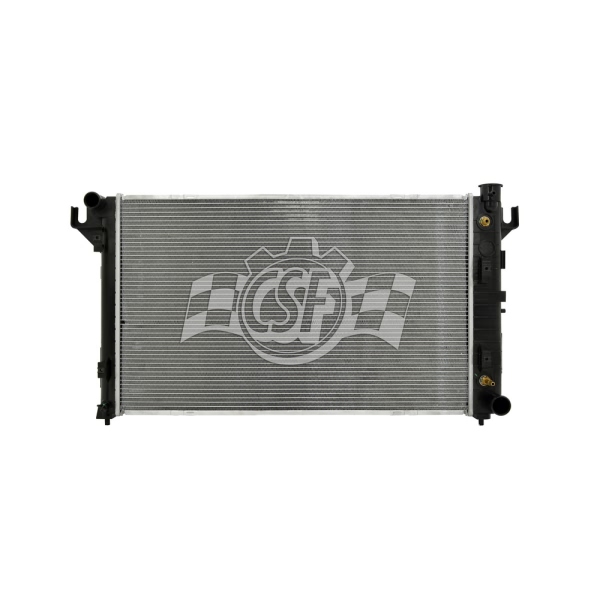

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/4 Right |
Box Height (in) | 6 14/16 |
Box Length (in) | 43 5/8 |
Box Weight (lbs) | 18 |
Box Width (in) | 24 1/8 |
Core Length | 31 11/16 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 19 3/16 |
Cross-flow/ Down-flow | Cross Flow |
Csf Cap Number | 4515 |
Hazardous Material | No |
Inlet Length (in) | 19 13/16 |
Inlet Width (in) | 2 1/8 |
No. Of Rows | 1 |
UPC | 710353033586 |
OE Part Number | 52006491, 52028057, 52006491 AB, 52006491 AC, 1552, CU1552, 52028057 AD, 52028057 AE, 8011552, 52028057 AB |
Oil Cooler (in) | 14 3/8 (high-efficiency Plate Type) |
Outlet Length(in) | 19 13/16 |
Outlet Width | 2 1/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;Manufactured with steel crimps to strengthen radiator by 40% over O.E. |
Top Hose Fitting (in) | 1 1/2 Left |
Year Make Model | Trim | Engine |
---|---|---|
1994-1999 Dodge Ram 1500 | All Trims | 8 Cyl 5.9L |
1994-2001 Dodge Ram 1500 | All Trims | 6 Cyl 3.9L |
1994-2001 Dodge Ram 1500 | All Trims | 8 Cyl 5.2L |
1994-1999 Dodge Ram 2500 | All Trims | 8 Cyl 5.9L |
1995-1996 Dodge Ram 2500 | All Trims | 8 Cyl 5.2L |
1994-1999 Dodge Ram 3500 | All Trims | 8 Cyl 5.9L |
1995-1996 Dodge Ramcharger | All Trims | 8 Cyl 5.9L |
1999-2001 Dodge Ramcharger | All Trims | 8 Cyl 5.2L |
