Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3356 |

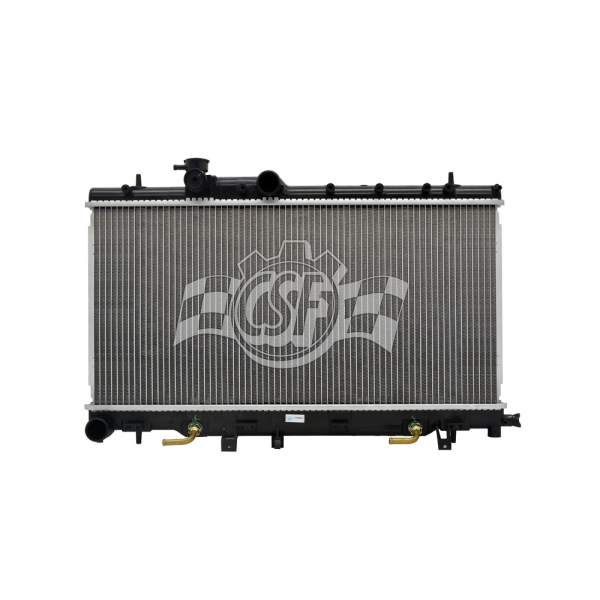

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 9/16 Left |
Box Height (in) | 4 14/16 |
Box Length (in) | 30 7/8 |
Box Weight (lbs) | 10 |
Box Width (in) | 21 |
Core Length | 13 3/8 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 27 1/16 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4540 |
Hazardous Material | No |
Inlet Length (in) | 27 13/16 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353033562 |
OE Part Number | 2703, 45111 FF101, 45111 FF102, 45111 FF112, 2704, 8012703, 45111 FF111, CU2703, 8012704 |
Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
Outlet Length(in) | 27 13/16 |
Outlet Width | 2 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;High Performance model;Manufactured with steel crimps to strengthen radiator by 40% over O.E. |
Top Hose Fitting (in) | 1 9/16 Centre |
Year Make Model | Trim | Engine |
---|---|---|
2005-2006 Saab 9-2X | All Trims | 4 Cyl 2.5L |
2005 Subaru Baja | All Trims | 4 Cyl 2.5L |
2002-2004 Subaru Impreza | TS | 4 Cyl 2.5L |
2002-2005 Subaru Impreza | WRX | 4 Cyl 2.0L |
2002-2005 Subaru Impreza | RS | 4 Cyl 2.5L |
2004-2005 Subaru Impreza | WRX STI | 4 Cyl 2.5L |
2005-2007 Subaru Impreza | Outback Sport | 4 Cyl 2.5L |
