Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3338 |

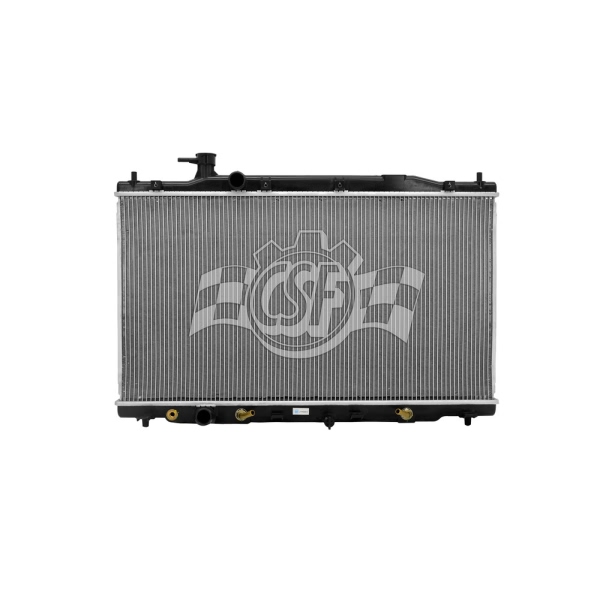

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 5/16 Left |
Box Height (in) | 5 11/16 |
Box Length (in) | 31 5/8 |
Box Weight (lbs) | 10 |
Box Width (in) | 22 15/16 |
Core Length | 15 13/16 |
Core Material | Aluminum |
Core Thickness | 5/8 |
Core Width | 29 1/16 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4514 |
Hazardous Material | No |
Inlet Length (in) | 29 1/2 |
Inlet Width (in) | 1 |
No. Of Rows | 1 |
UPC | 710353033388 |
OE Part Number | 13031, 19010-RZY-A51, 8013031, CU13031 |
Oil Cooler (in) | 12 13/16 (high-effeciency Concentric Type) |
Outlet Length(in) | 29 1/2 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core with quick-connect outlet pipe. |
Top Hose Fitting (in) | 1 1/4 Left |
Year Make Model | Trim | Engine |
---|---|---|
2007-2009 Honda CR-V | All Trims | 4 Cyl 2.4L |
