Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3319 |

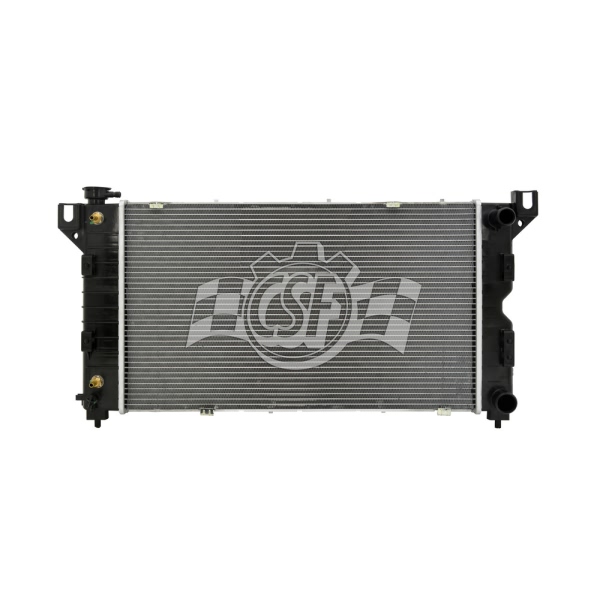

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 9/16 Right |
Box Height (in) | 7 1/16 |
Box Length (in) | 37 5/16 |
Box Weight (lbs) | 13 |
Box Width (in) | 20 |
Core Length | 25 13/16 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 15 1/4 |
Cross-flow/ Down-flow | Cross Flow |
Csf Cap Number | 4501 |
Hazardous Material | No |
Inlet Length (in) | 15 3/8 |
Inlet Width (in) | 2 1/8 |
No. Of Rows | 1 |
UPC | 710353033197 |
OE Part Number | 4682588, 4682976, CU1850, 8011850, 1850 |
Oil Cooler (in) | 10 1/16 (high-efficiency Plate Type) |
Outlet Length(in) | 15 3/8 |
Outlet Width | 2 1/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core; Improved higher performance brazed Aluminum core to replace O.E. Mechanical core. |
Top Hose Fitting (in) | 1 1/4 Right |
Year Make Model | Trim | Engine |
---|---|---|
2000 Chrysler Grand Voyager | All Trims | 6 Cyl 3.0L |
2000 Chrysler Grand Voyager | All Trims | 6 Cyl 3.3L |
1996-2000 Chrysler Town & Country | All Trims | 6 Cyl 3.3L |
1996-2000 Chrysler Town & Country | All Trims | 6 Cyl 3.8L |
1996-1998 Chrysler Voyager | All Trims | 6 Cyl 3.3L |
2000 Chrysler Voyager | All Trims | 4 Cyl 2.4L |
2000 Chrysler Voyager | All Trims | 6 Cyl 3.0L |
2000 Chrysler Voyager | All Trims | 6 Cyl 3.3L |
1996-1999 Dodge Caravan | All Trims | 6 Cyl 3.8L |
1996-2000 Dodge Caravan | All Trims | 4 Cyl 2.4L |
