Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3292 |

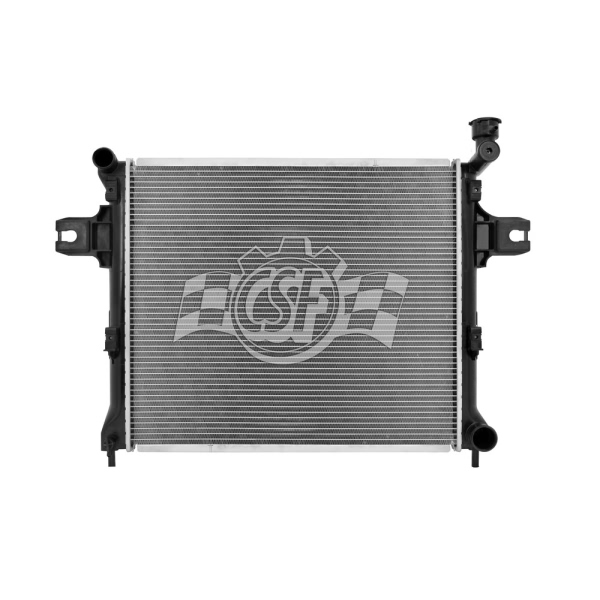

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 13/16 Right |
Box Height (in) | 9 |
Box Length (in) | 35 3/16 |
Box Weight (lbs) | 14 |
Box Width (in) | 26 5/16 |
Core Length | 23 1/8 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 20 |
Cross-flow/ Down-flow | Cross Flow |
Csf Cap Number | 4539 |
Hazardous Material | No |
Inlet Length (in) | 20 9/16 |
Inlet Width (in) | 2 1/8 |
No. Of Rows | 1 |
UPC | 710353032923 |
OE Part Number | CU2839, CU2840, 2839, 8012840, 55116849 AC, 2840, 8012839, 55116842 AB |
Outlet Length(in) | 20 9/16 |
Outlet Width | 2 1/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;Manufactured with steel crimp strips to strengthen Radiator by 40% over O.E. |
Top Hose Fitting (in) | 1 1/2 Left |
Year Make Model | Trim | Engine |
---|---|---|
2006-2010 Jeep Commander | All Trims | 6 Cyl 3.7L |
2006-2010 Jeep Commander | All Trims | 8 Cyl 4.7L |
2006-2010 Jeep Commander | All Trims | 8 Cyl 5.7L |
2005-2010 Jeep Grand Cherokee | All Trims | 6 Cyl 3.7L |
2005-2010 Jeep Grand Cherokee | All Trims | 8 Cyl 4.7L |
2005-2010 Jeep Grand Cherokee | All Trims | 8 Cyl 5.7L |
2006-2010 Jeep Grand Cherokee | All Trims | 8 Cyl 6.1L |
