Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3279 |

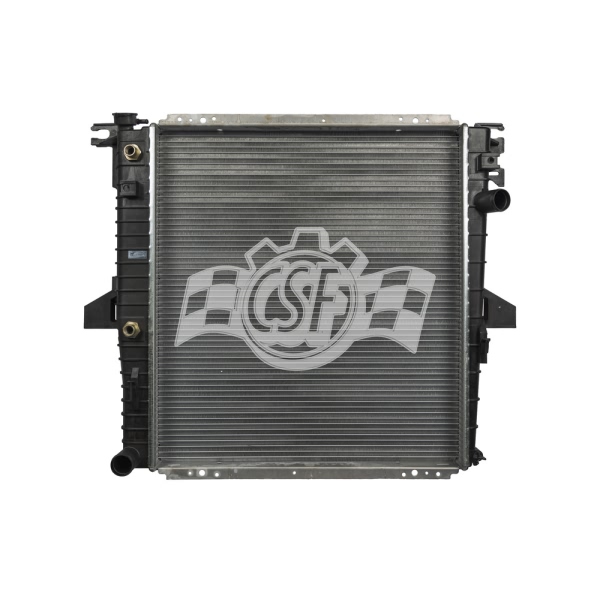

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/2 Right |
Box Height (in) | 6 |
Box Length (in) | 32 |
Box Weight (lbs) | 15 |
Box Width (in) | 28 |
Core Length | 20 11/16 |
Core Material | Aluminum |
Core Thickness | 15/16 |
Core Width | 23 11/16 |
Cross-flow/ Down-flow | Cross Flow |
Csf Cap Number | 4503 |
Hazardous Material | No |
Inlet Length (in) | 23 5/8 |
Inlet Width (in) | 2 3/4 |
No. Of Rows | 1 |
UPC | 710353032794 |
OE Part Number | 2308, XL2Z 8005 CA, XL2H 8005 CA, 8012308, CU2308 |
Oil Cooler (in) | 12 (high-efficiency Plate Type) |
Outlet Length(in) | 23 5/8 |
Outlet Width | 2 3/4 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 1/2 Left |
Year Make Model | Trim | Engine |
---|---|---|
1998-2001 Ford Explorer | All Trims | 8 Cyl 5.0L |
1998-2001 Mercury Mountaineer | All Trims | 8 Cyl 5.0L |
