Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3263 |

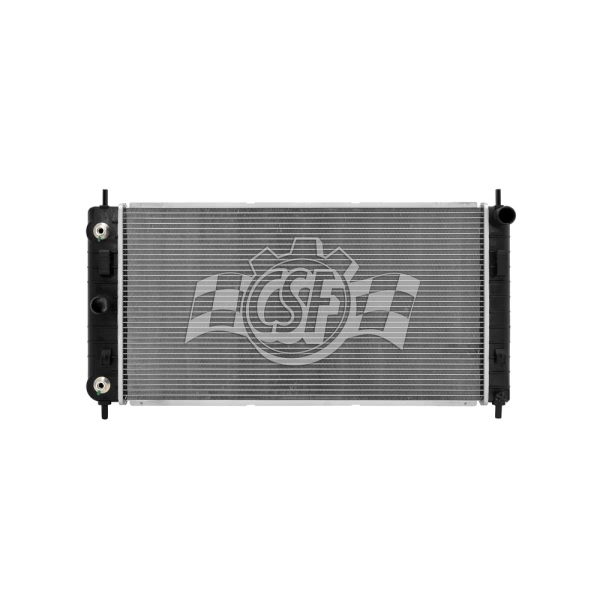

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 5/16Centre |
Box Height (in) | 5 14/16 |
Box Length (in) | 34 9/16 |
Box Weight (lbs) | 8 |
Box Width (in) | 18 5/8 |
Core Length | 26 3/4 |
Core Material | Aluminum |
Core Thickness | 5/8 |
Core Width | 14 1/2 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 14 5/8 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353032633 |
OE Part Number | 52486987, 2765, CU2765, 8012765 |
Oil Cooler (in) | 11 1/2 (high-efficiency Plate Type) |
Outlet Length(in) | 14 5/8 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect oil cooler fittings. |
Top Hose Fitting (in) | 1 5/16 Left |
Year Make Model | Trim | Engine |
---|---|---|
2004-2005 Chevrolet Malibu | Base | 4 Cyl 2.2L |
2006 Chevrolet Malibu | LS | 4 Cyl 2.2L |
2006 Chevrolet Malibu | LT | 4 Cyl 2.2L |
2007-2008 Chevrolet Malibu | All Trims | 4 Cyl 2.2L |
