Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3249 |

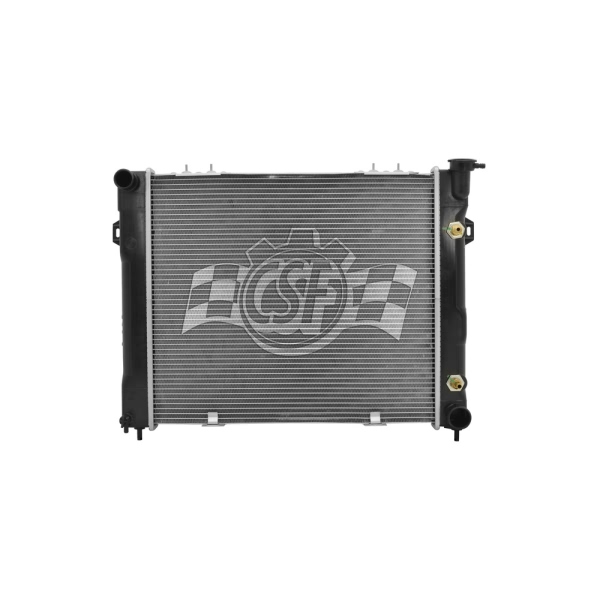

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/4 Right |
Box Height (in) | 5 4/16 |
Box Length (in) | 31 1/16 |
Box Weight (lbs) | 14 |
Box Width (in) | 24 1/8 |
Core Length | 22 1/4 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 19 5/8 |
Cross-flow/ Down-flow | Cross Flow |
Csf Cap Number | 4515 |
Hazardous Material | No |
Inlet Length (in) | 20 5/8 |
Inlet Width (in) | 2 |
No. Of Rows | 1 |
UPC | 710353032497 |
OE Part Number | 4734104, 52006644, 52028098, 52027798, 52079598, CU1394, 8011394, 8012206, CU2206 |
Oil Cooler (in) | 12 (high-effeciency Concentric Type) |
Outlet Length(in) | 20 5/8 |
Outlet Width | 2 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | Economical Lightweight Aluminum core model with high performance oil cooler; Enhanced Multifit model to accommodate all variations of fan shrouds; Also 3/8" & 7/16" flare fittings supplied to accommodate snap-on & push-on oil cooler lines. |
Top Hose Fitting (in) | 1 1/2 Left |
Year Make Model | Trim | Engine |
---|---|---|
1993-1998 Jeep Grand Cherokee | All Trims | 8 Cyl 5.2L |
1998 Jeep Grand Cherokee | All Trims | 8 Cyl 5.9L |
1993 Jeep Grand Wagoneer | All Trims | 8 Cyl 5.2L |
