Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3238 |

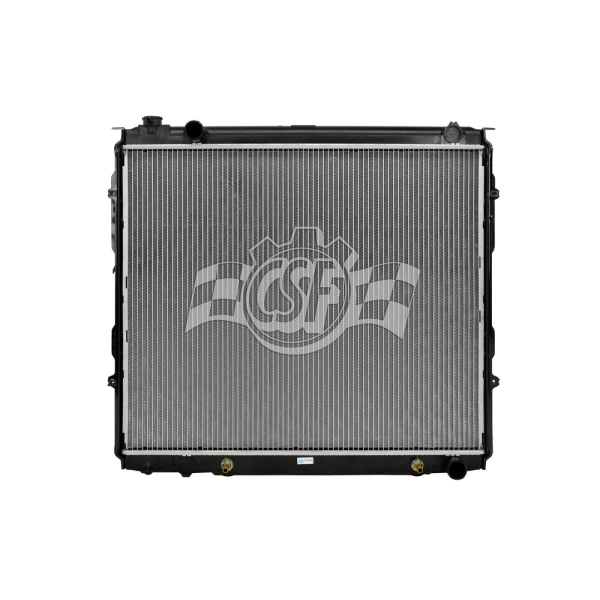

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/2 Right |
Box Height (in) | 5 1/2 |
Box Length (in) | 30 7/16 |
Box Weight (lbs) | 18 |
Box Width (in) | 32 3/8 |
Core Length | 23 5/8 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 27 1/2 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4514 |
Hazardous Material | No |
Inlet Length (in) | 28 |
Inlet Width (in) | 1 15/16 |
No. Of Rows | 1 |
UPC | 710353032381 |
OE Part Number | 16400-0F040, CU2809, 8012809, 2965, 2376, 16400-0F030, 8012965, 8012376, 2809, 221-0518, CU2376 |
Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
Outlet Length(in) | 28 |
Outlet Width | 1 15/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 1/2 Left |
Year Make Model | Trim | Engine |
---|---|---|
2001-2007 Toyota Sequoia | All Trims | 8 Cyl 4.7L |
2004-2006 Toyota Tundra | All Trims | 8 Cyl 4.7L |
