Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3174 |

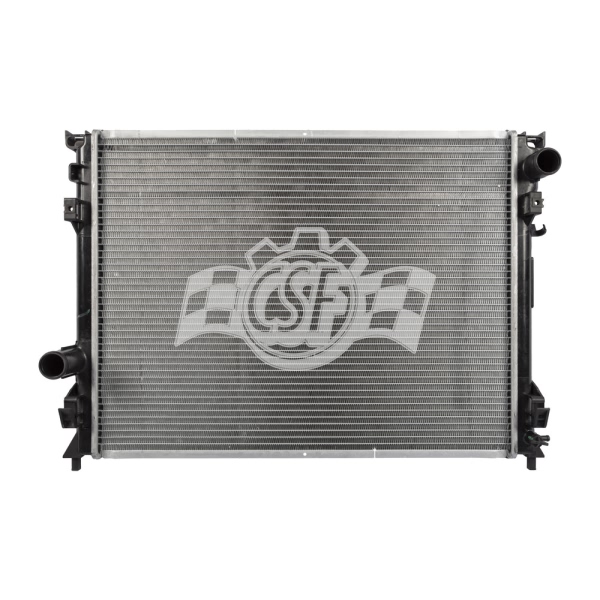

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/2 Left |
Box Height (in) | 6 1/16 |
Box Length (in) | 30 1/4 |
Box Weight (lbs) | 10 |
Box Width (in) | 22 9/16 |
Core Length | 24 1/8 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 18 7/16 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 19 |
Inlet Width (in) | 1 3/4 |
No. Of Rows | 1 |
UPC | 710353031742 |
OE Part Number | 2766, CU2766, CU2767, 8012767, 5137692 AA, 8012766, 5170742 AA, 5175367 AA, 5137691 AA, 2767 |
Outlet Length(in) | 19 |
Outlet Width | 1 3/4 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 1/2 Right |
Year Make Model | Trim | Engine |
---|---|---|
2005-2008 Chrysler 300 | All Trims | 6 Cyl 2.7L |
2005-2008 Chrysler 300 | All Trims | 6 Cyl 3.5L |
2005-2008 Chrysler 300 | All Trims | 8 Cyl 5.7L |
2005-2008 Chrysler 300 | All Trims | 8 Cyl 6.1L |
2011-2019 Chrysler 300 | All Trims | 8 Cyl 5.7L |
2012-2014 Chrysler 300 | All Trims | 8 Cyl 6.4L |
2008-2009 Dodge Challenger | All Trims | 8 Cyl 6.1L |
2011-2020 Dodge Challenger | All Trims | 8 Cyl 6.4L |
2015-2020 Dodge Challenger | All Trims | 8 Cyl 5.7L |
2015-2020 Dodge Challenger | All Trims | 8 Cyl 6.2L |
