Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3130 |

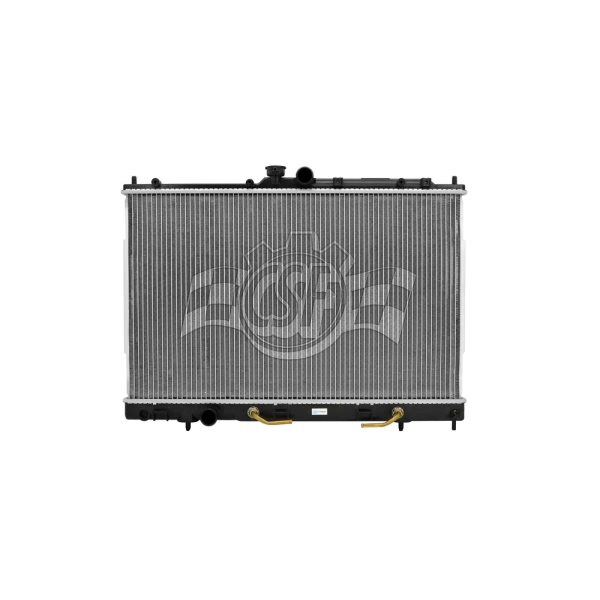

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/8 Left |
Box Height (in) | 4 14/16 |
Box Length (in) | 29 11/16 |
Box Weight (lbs) | 8 |
Box Width (in) | 23 9/16 |
Core Length | 16 3/4 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 27 1/16 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4503 |
Hazardous Material | No |
Inlet Length (in) | 27 13/16 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353031308 |
OE Part Number | 2617, MN 180842, 221-3301, CU2617, MN 180172, 8012617 |
Oil Cooler (in) | 11 13/16 (high-effeciency Concentric Type) |
Outlet Length(in) | 27 13/16 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 3/8 Centre |
Year Make Model | Trim | Engine |
---|---|---|
2004-2006 Mitsubishi Outlander | All Trims | 4 Cyl 2.4L |
