Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3123 |

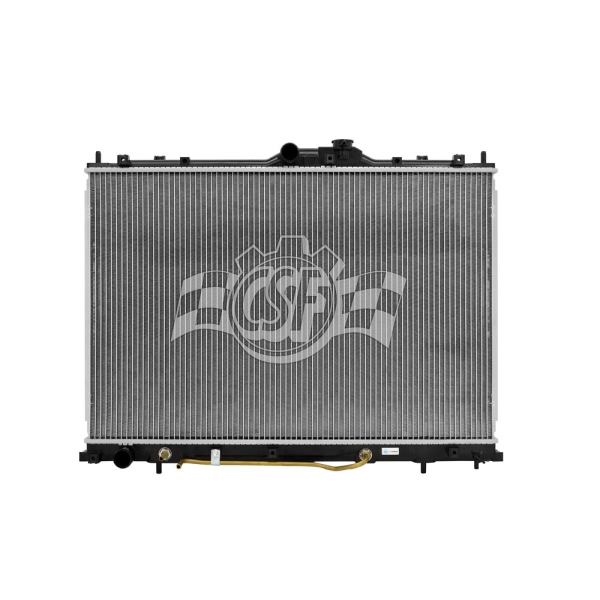

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/8 Left |
Box Height (in) | 5 1/2 |
Box Length (in) | 32 13/16 |
Box Weight (lbs) | 13 |
Box Width (in) | 26 1/2 |
Core Length | 19 3/4 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 29 13/16 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4514 |
Hazardous Material | No |
Inlet Length (in) | 30 1/4 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353031230 |
OE Part Number | MR 571067, CU2675, 1350 A 163, 8012675, MR 571068, 1350 A 162 |
Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
Outlet Length(in) | 30 1/4 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 3/8 Centre |
Year Make Model | Trim | Engine |
---|---|---|
2004-2008 Mitsubishi Endeavor | All Trims | 6 Cyl 3.8L |
2010-2011 Mitsubishi Endeavor | All Trims | 6 Cyl 3.8L |
