Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3109 |

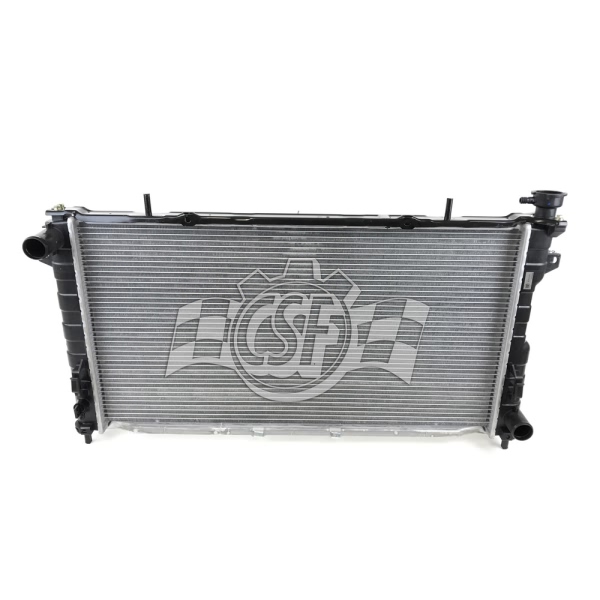

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/2 Right |
Box Height (in) | 8 |
Box Length (in) | 40 |
Box Weight (lbs) | 16 |
Box Width (in) | 23 |
Core Length | 30 1/4 |
Core Material | Aluminum |
Core Thickness | 15/16 |
Core Width | 16 7/16 |
Cross-flow/ Down-flow | Cross Flow |
Csf Cap Number | 4515 |
Hazardous Material | No |
Inlet Length (in) | 16 7/8 |
Inlet Width (in) | 2 1/16 |
No. Of Rows | 1 |
UPC | 710353031094 |
OE Part Number | 2311, 4809168, 4809219, 4809225, 8012311, CU2311, 4809168 AC |
Outlet Length(in) | 16 7/8 |
Outlet Width | 2 1/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M style plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 1/2 Left |
Year Make Model | Trim | Engine |
---|---|---|
2001-2004 Chrysler Town & Country | All Trims | 6 Cyl 3.3L |
2001-2004 Chrysler Town & Country | All Trims | 6 Cyl 3.8L |
2001-2004 Chrysler Voyager | All Trims | 6 Cyl 3.3L |
2001-2004 Dodge Caravan | All Trims | 6 Cyl 3.3L |
2001-2004 Dodge Grand Caravan | All Trims | 6 Cyl 3.3L |
2001-2004 Dodge Grand Caravan | All Trims | 6 Cyl 3.8L |
