Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 2990 |

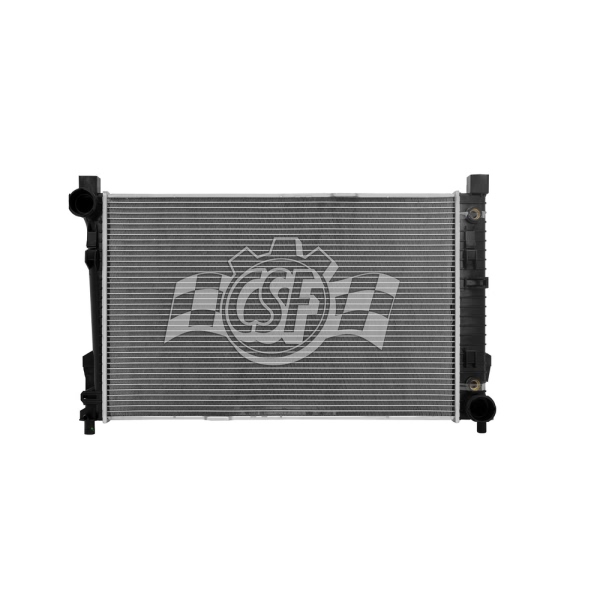

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/4 Right |
Box Height (in) | 5 1/2 |
Box Length (in) | 32 5/8 |
Box Weight (lbs) | 10 |
Box Width (in) | 21 |
Core Length | 25 9/16 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 16 1/16 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 16 5/8 |
Inlet Width (in) | 1 7/16 |
No. Of Rows | 1 |
UPC | 710353029909 |
OE Part Number | 2337, 203 500 0503, 8012337, CU2337 |
Oil Cooler (in) | 12 3/8 (high-efficiency Plate Type) |
Outlet Length(in) | 16 5/8 |
Outlet Width | 1 7/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 3/4 Left |
Year Make Model | Trim | Engine |
---|---|---|
2002 Mercedes-Benz C230 | All Trims | 4 Cyl 2.3L |
2003-2005 Mercedes-Benz C230 | All Trims | 4 Cyl 1.8L |
2006-2007 Mercedes-Benz C230 | All Trims | 6 Cyl 2.5L |
2001-2005 Mercedes-Benz C240 | All Trims | 6 Cyl 2.6L |
2006-2007 Mercedes-Benz C280 | All Trims | 6 Cyl 3.0L |
2002-2004 Mercedes-Benz C32 AMG | All Trims | 6 Cyl 3.2L |
2001-2005 Mercedes-Benz C320 | All Trims | 6 Cyl 3.2L |
2006-2007 Mercedes-Benz C350 | All Trims | 6 Cyl 3.5L |
