Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 2946 |

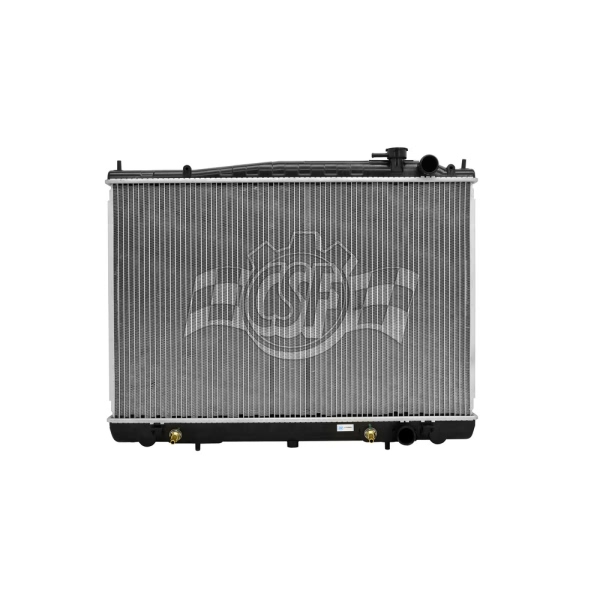

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 7/16 Right |
Box Height (in) | 5 1/16 |
Box Length (in) | 30 1/4 |
Box Weight (lbs) | 13 |
Box Width (in) | 24 3/4 |
Core Length | 17 11/16 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 27 1/16 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4503 |
Hazardous Material | No |
Inlet Length (in) | 27 13/16 |
Inlet Width (in) | 2 |
No. Of Rows | 1 |
UPC | 710353029466 |
OE Part Number | CU2409, 21460-5S700, 21410-5S700, 2409, 8012409 |
Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
Outlet Length(in) | 27 13/16 |
Outlet Width | 2 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 7/16 Right |
Year Make Model | Trim | Engine |
---|---|---|
2001-2004 Nissan Frontier | All Trims | 6 Cyl 3.3L |
2002-2004 Nissan Xterra | All Trims | 6 Cyl 3.3L |
