Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 2945 |

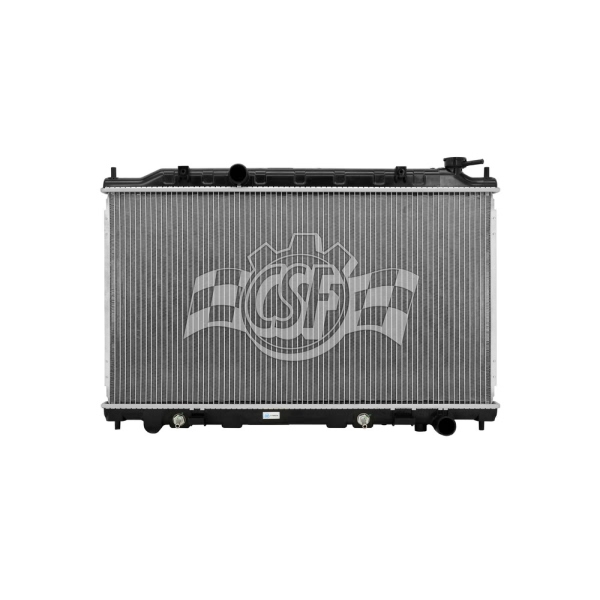

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/8 Right |
Box Height (in) | 4 1/2 |
Box Length (in) | 31 7/16 |
Box Weight (lbs) | 9 |
Box Width (in) | 22 3/16 |
Core Length | 15 13/16 |
Core Material | Aluminum |
Core Thickness | 5/8 |
Core Width | 28 11/16 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4502 |
Hazardous Material | No |
Inlet Length (in) | 29 1/2 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353029459 |
OE Part Number | 2415, 21460-8J100, 21410-8J100, 8012415, CU2415 |
Oil Cooler (in) | 13 3/4 (high-effeciency Concentric Type) |
Outlet Length(in) | 29 1/2 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 3/8 Left |
Year Make Model | Trim | Engine |
---|---|---|
2002-2006 Nissan Altima | All Trims | 6 Cyl 3.5L |
2004-2006 Nissan Maxima | All Trims | 6 Cyl 3.5L |
