Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 2928 |

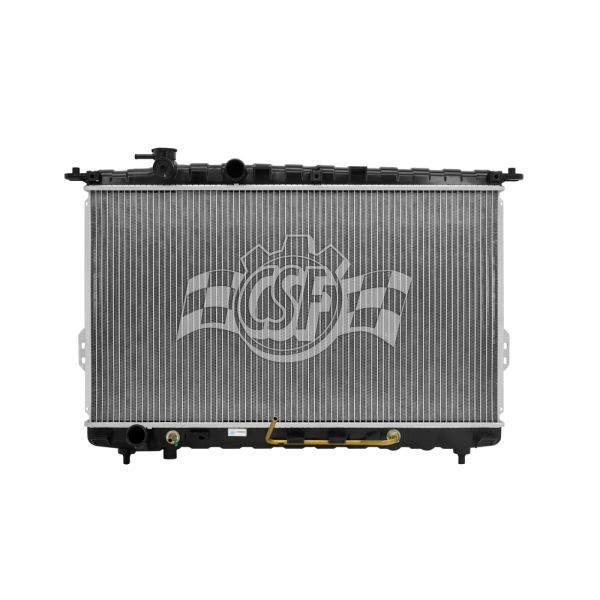

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/8 Left |
Box Height (in) | 5 14/16 |
Box Length (in) | 32 13/16 |
Box Weight (lbs) | 11 |
Box Width (in) | 22 15/16 |
Core Length | 15 3/4 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 27 7/8 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4503 |
Hazardous Material | No |
Inlet Length (in) | 28 3/8 |
Inlet Width (in) | 1 11/16 |
No. Of Rows | 1 |
UPC | 710353029282 |
OE Part Number | 25310-39500, 2903, 25310-38050, 2339, 25310-38001, 8012339, CU2584, 2584, CU2339, 8012584 |
Oil Cooler (in) | 15 1/16 (high-effeciency Concentric Type) |
Outlet Length(in) | 28 3/8 |
Outlet Width | 1 11/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 3/8 Left |
Year Make Model | Trim | Engine |
---|---|---|
1999-2001 Hyundai Sonata | All Trims | 6 Cyl 2.5L |
1999-2005 Hyundai Sonata | All Trims | 4 Cyl 2.4L |
2002-2005 Hyundai Sonata | All Trims | 6 Cyl 2.7L |
2001 Hyundai XG300 | All Trims | 6 Cyl 3.0L |
2002-2005 Hyundai XG350 | All Trims | 6 Cyl 3.5L |
2001 Kia Optima | All Trims | 6 Cyl 2.5L |
2001-2005 Kia Optima | All Trims | 4 Cyl 2.4L |
2002-2005 Kia Optima | All Trims | 6 Cyl 2.7L |
