Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 2927 |

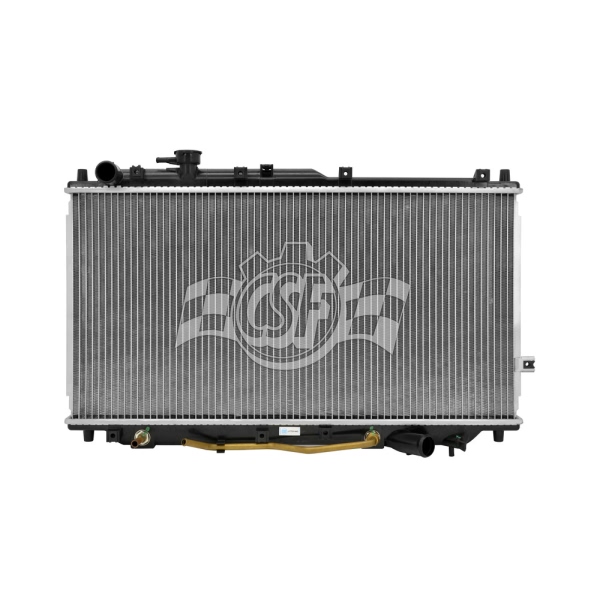

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 5/16 Right |
Box Height (in) | 5 4/16 |
Box Length (in) | 29 7/8 |
Box Weight (lbs) | 8 |
Box Width (in) | 19 13/16 |
Core Length | 13 9/16 |
Core Material | Aluminum |
Core Thickness | 5/8 |
Core Width | 26 11/16 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4503 |
Hazardous Material | No |
Inlet Length (in) | 27 1/4 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353029275 |
OE Part Number | 0K2A2-15-200C, 8012441, 0K2A6-15-200C, 0K2A1-15-200E, CU2441, 0K2A6-15-200J |
Oil Cooler (in) | 13 3/4 (high-effeciency Concentric Type) |
Outlet Length(in) | 27 1/4 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 5/16 Left |
Year Make Model | Trim | Engine |
---|---|---|
1998-2001 Kia Sephia | All Trims | 4 Cyl 1.8L |
2000-2004 Kia Spectra | All Trims | 4 Cyl 1.8L |
