Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 2886 |

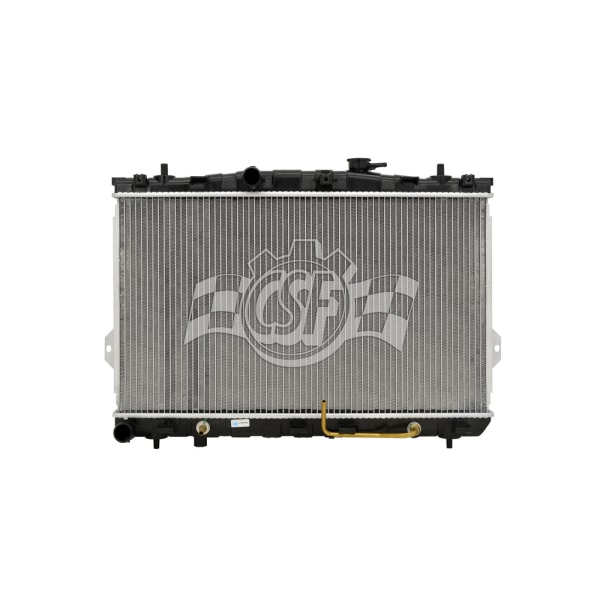

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 5/16 Left |
Box Height (in) | 5 1/16 |
Box Length (in) | 28 7/8 |
Box Weight (lbs) | 8 |
Box Width (in) | 21 3/4 |
Core Length | 14 3/4 |
Core Material | Aluminum |
Core Thickness | 5/8 |
Core Width | 25 1/2 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4503 |
Hazardous Material | No |
Inlet Length (in) | 26 1/16 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353028865 |
OE Part Number | 25310-2D110, 2391, 8012387, 25310-27000, 25310-2D000, CU2387, 2387, CU2391, 8012391, 8012587, 2586, 25310-2D010, 2388, 25310-2D100, 2587 |
Oil Cooler (in) | 14 9/16 (high-effeciency Concentric Type) |
Outlet Length(in) | 26 1/16 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 5/16 Left |
Year Make Model | Trim | Engine |
---|---|---|
2001-2006 Hyundai Elantra | All Trims | 4 Cyl 2.0L |
1997 Hyundai Tiburon | All Trims | 4 Cyl 1.8L |
1997-1999 Hyundai Tiburon | All Trims | 4 Cyl 2.0L |
2003-2008 Hyundai Tiburon | All Trims | 4 Cyl 2.0L |
2003-2008 Hyundai Tiburon | All Trims | 6 Cyl 2.7L |
