Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 2820 |

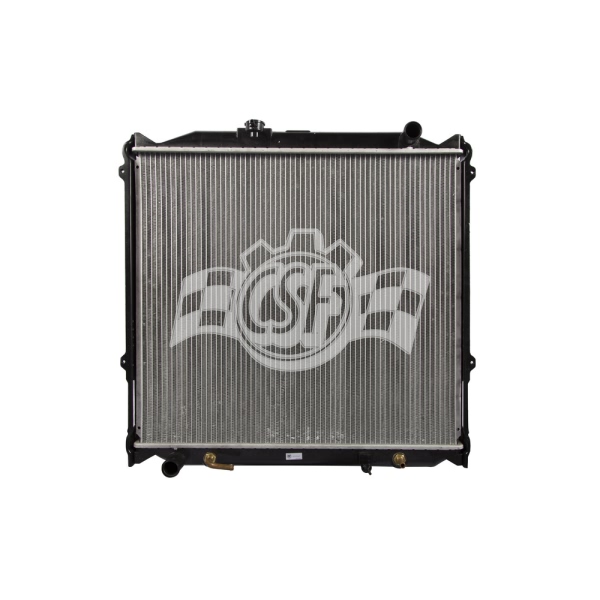

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/8 Left |
Box Height (in) | 6 |
Box Length (in) | 31 |
Box Weight (lbs) | 17 |
Box Width (in) | 31 |
Core Length | 22 5/8 |
Core Material | Aluminum |
Core Thickness | 15/16 |
Core Width | 25 1/4 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4513 |
Hazardous Material | No |
Inlet Length (in) | 25 9/16 |
Inlet Width (in) | 1 3/4 |
No. Of Rows | 1 |
UPC | 710353028209 |
OE Part Number | 2207, 16400-75180, 16400-75160, 8011998, 8012207, 221-0508, CU1998, 1998 |
Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
Outlet Length(in) | 25 9/16 |
Outlet Width | 1 3/4 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M style plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 3/8 Right |
Year Make Model | Trim | Engine |
---|---|---|
1996-2000 Toyota 4Runner | All Trims | 4 Cyl 2.7L |
1996-2002 Toyota 4Runner | All Trims | 6 Cyl 3.4L |
