Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 2807 |

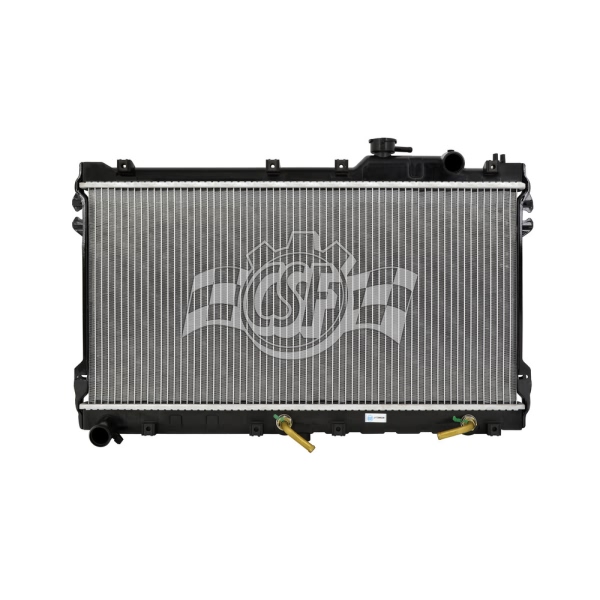

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/4 Left |
Box Height (in) | 4 14/16 |
Box Length (in) | 29 1/4 |
Box Weight (lbs) | 8 |
Box Width (in) | 20 |
Core Length | 12 5/8 |
Core Material | Aluminum |
Core Thickness | 5/8 |
Core Width | 25 1/2 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4502 |
Hazardous Material | No |
Inlet Length (in) | 26 1/16 |
Inlet Width (in) | 1 9/16 |
No. Of Rows | 1 |
UPC | 710353028070 |
OE Part Number | B61P-15-2000, 8011140, B64J-15-200 C, 2064 |
Oil Cooler (in) | 10 13/16 (high-effeciency Concentric Type) |
Outlet Length(in) | 26 1/16 |
Outlet Width | 1 9/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 1/4 Right |
Year Make Model | Trim | Engine |
---|---|---|
1990-1993 Mazda Miata | All Trims | 4 Cyl 1.6L |
