Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 2708 |

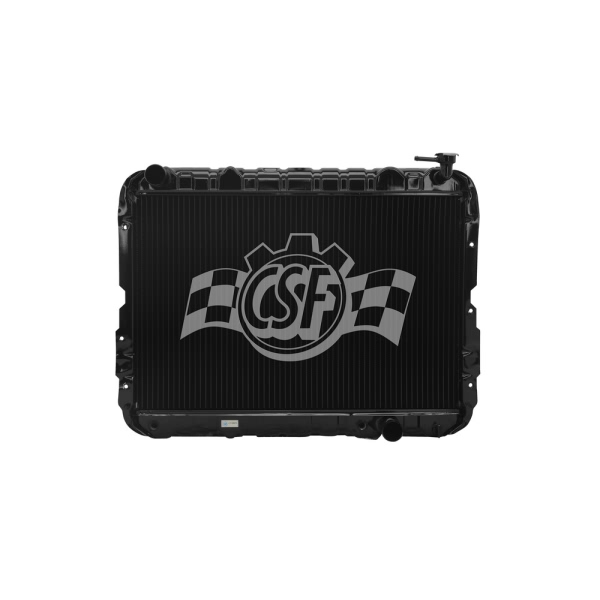

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/2 Right |
Box Height (in) | 7 4/16 |
Box Length (in) | 22 3/4 |
Box Weight (lbs) | 26 |
Box Width (in) | 28 11/16 |
Core Length | 15 3/4 |
Core Material | Copper |
Core Thickness | 2 5/16 |
Core Width | 23 15/16 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4502 |
Hazardous Material | No |
Inlet Length (in) | 23 15/16 |
Inlet Width (in) | 2 13/16 |
No. Of Rows | 4 |
UPC | 710353027080 |
OE Part Number | 16400-61051, 12, CU12 |
Oil Cooler (in) | 15 3/8 (high-effeciency Concentric Type) |
Outlet Length(in) | 23 15/16 |
Outlet Width | 2 13/16 |
Radiator Cap Supplied | No |
Tank Material | Brass |
Tech Note | Rugged ALL METAL model. |
Top Hose Fitting (in) | 1 1/2 Left |
Year Make Model | Trim | Engine |
---|---|---|
1981-1987 Toyota Land Cruiser | All Trims | 4 Cyl 3.4L |
1981-1987 Toyota Land Cruiser | All Trims | 6 Cyl 4.2L |
1987 Toyota Land Cruiser | All Trims | 4 Cyl 2.4L |
